A-C Weight Identification
(Click on image for larger view)

Disclaimer: I have attempted to determine the PRIMARY application of the weights listed.
However, it is possible (and often likely) that a particular weight can be used on models
other than those listed. Your results may vary. I have decided not to delve into the realm
of aftermarket weights (F&H, etc) at this time. -Brian Ahart

Updated 11/14/17

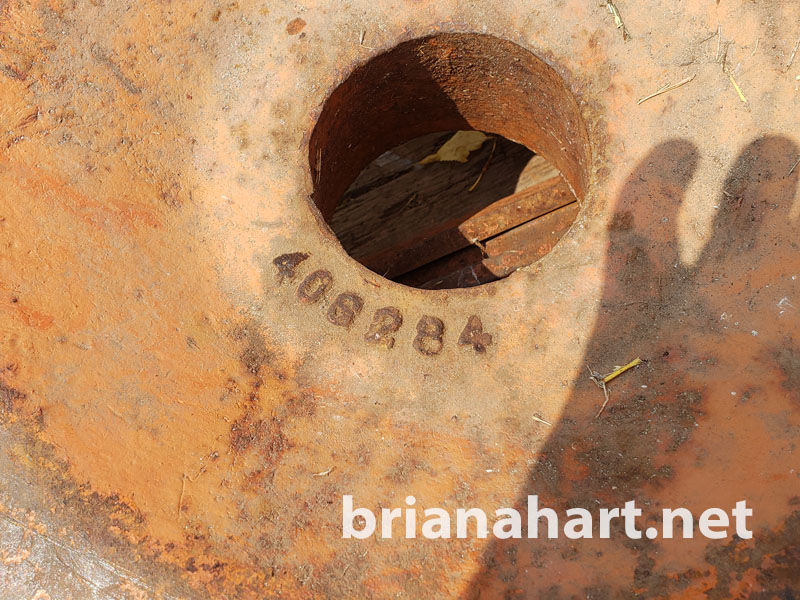

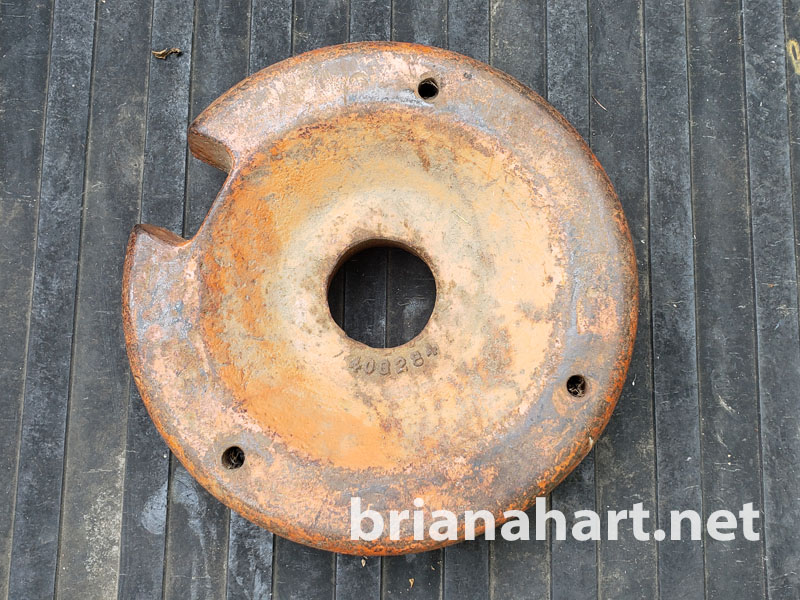

Front stack weights for WD/WD45/D15/D17/D19
(Bottom View)

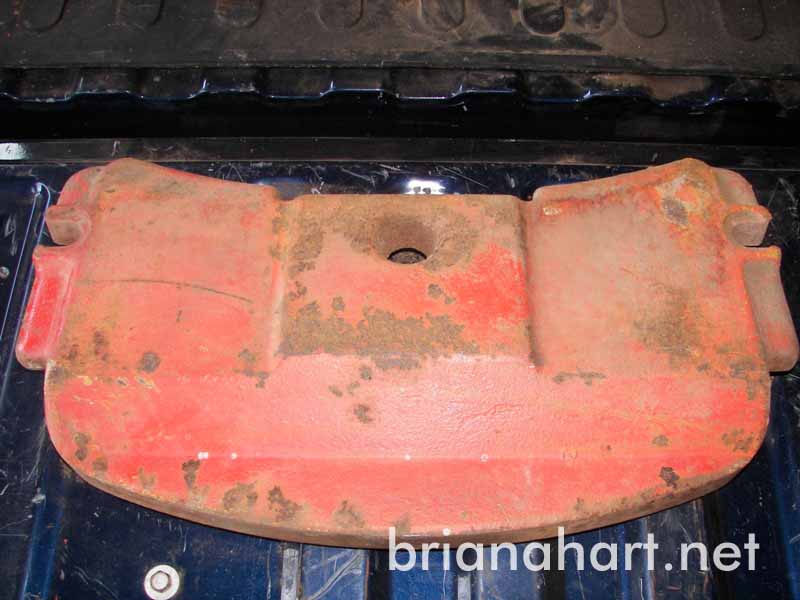

AM4162-3

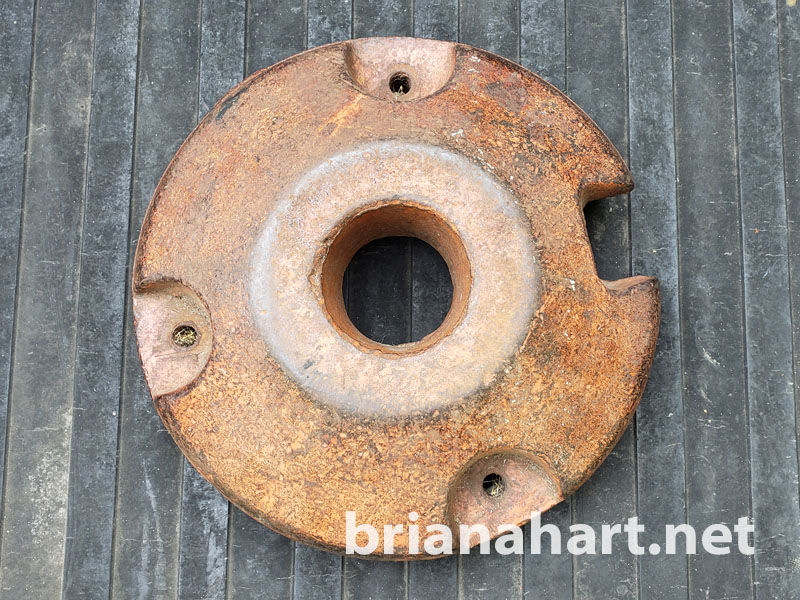

Front stack weights for WD/WD45/D15/D17/D19
(Top View)

AM4162-3

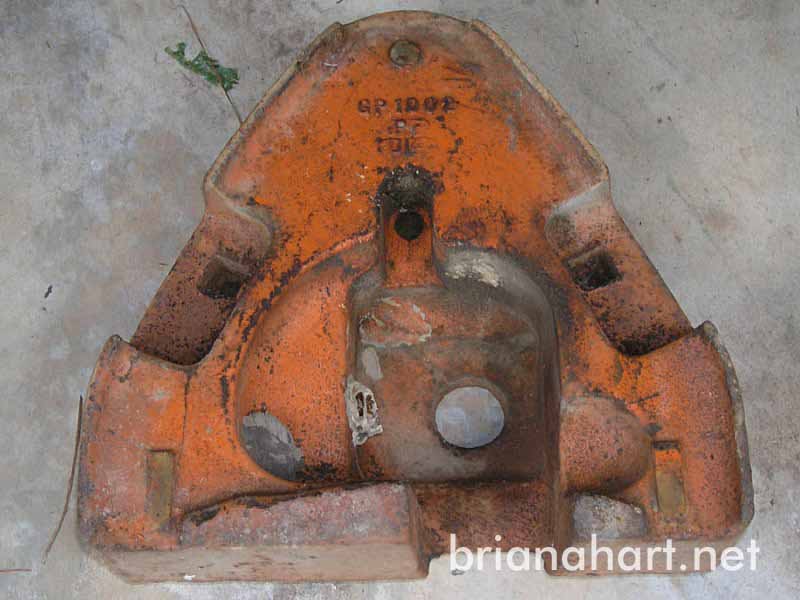

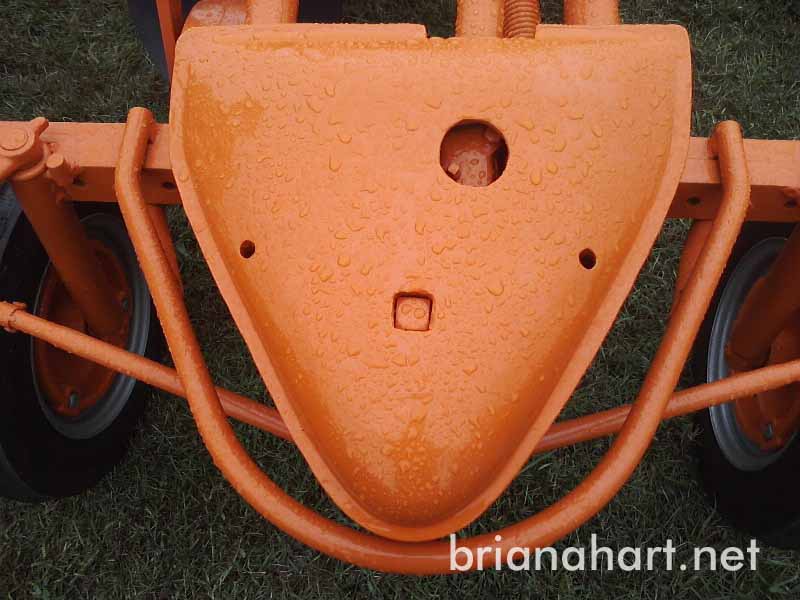

Front weight for Model G

GP1002

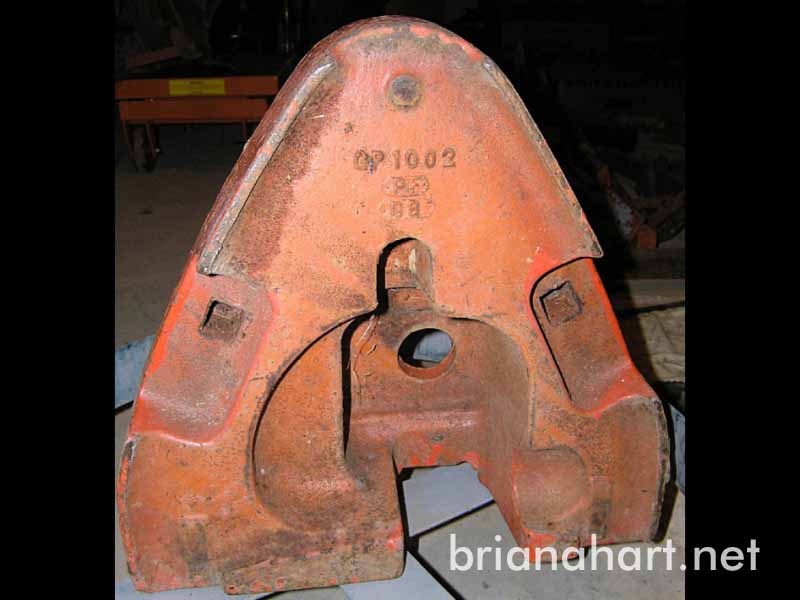

Front weight for Model G
(Photo courtesy of Scott(GA))
(Back View - Weight #1)

GP1002

Front weight for Model G
(Photo courtesy of Scott(GA))

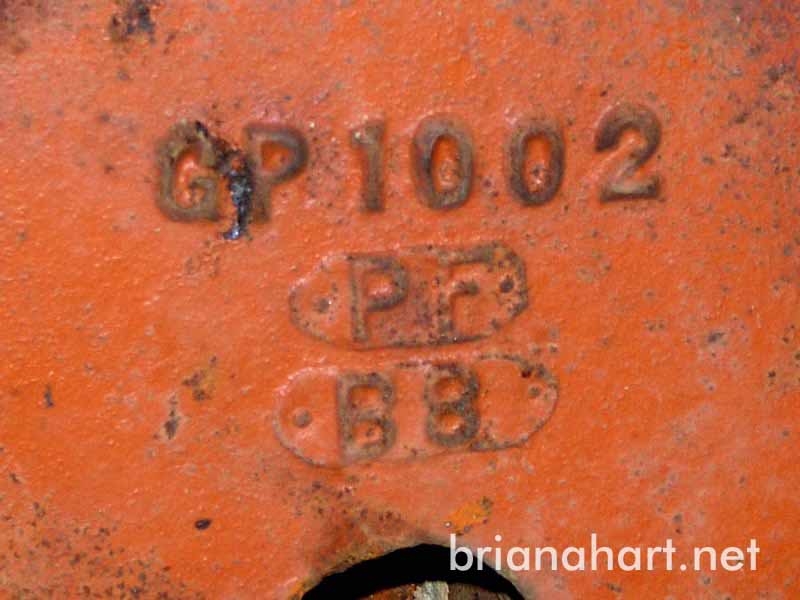

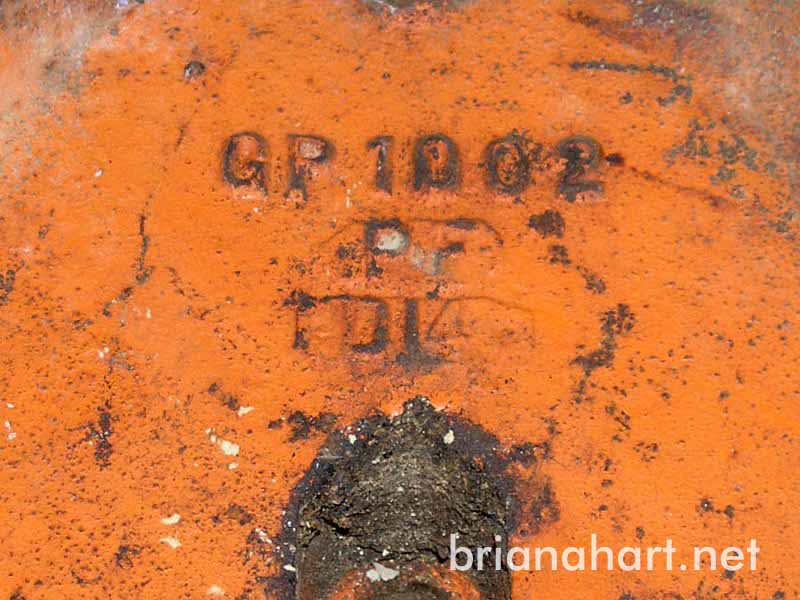

(Closeup of Casting Number - Weight #1)

GP1002

Front weight for Model G
(Photo courtesy of Scott(GA))
(Back View - Weight #2)

GP1002

Front weight for Model G
(Photo courtesy of Scott(GA))
(Closeup of Casting Number - Weight #2)

GP1002

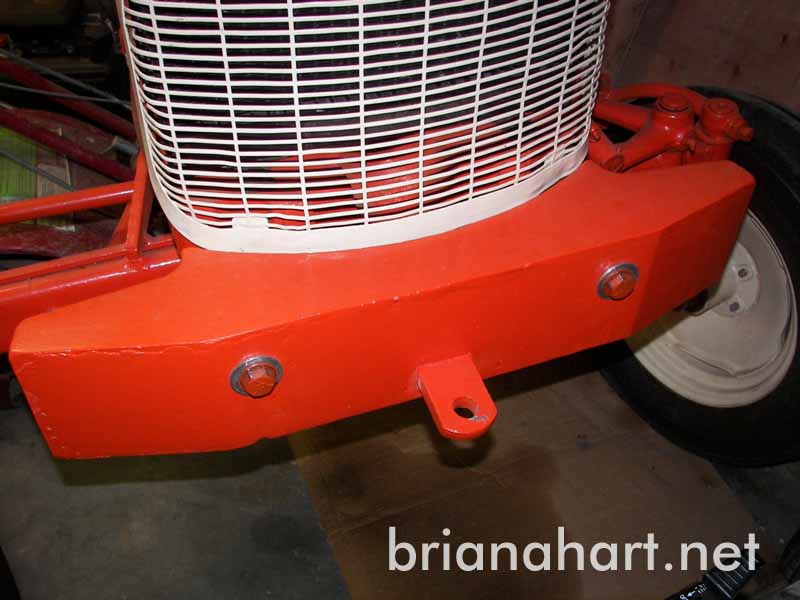

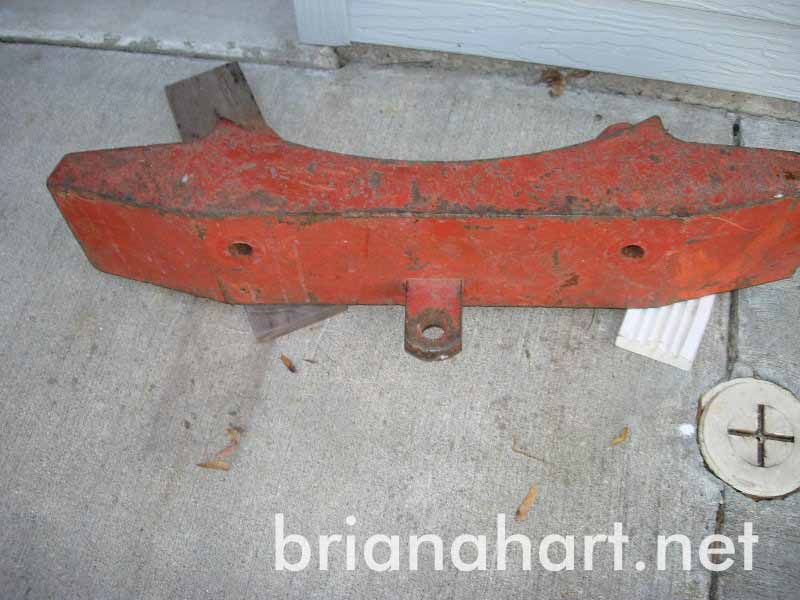

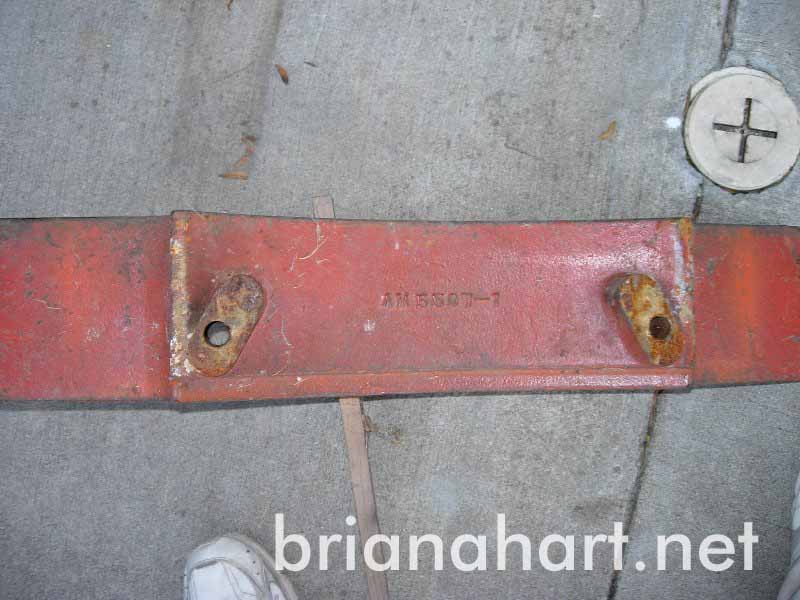

Front weight for D10/D12 Series III

AM5507-1

Front weight for D10/D12 Series III
(Photo courtesy of Joe Oligschlaeger)
(Front View)

AM5507-1

Front weight for D10/D12 Series III
(Photo courtesy of Joe Oligschlaeger)
(Back View)

AM5507-1

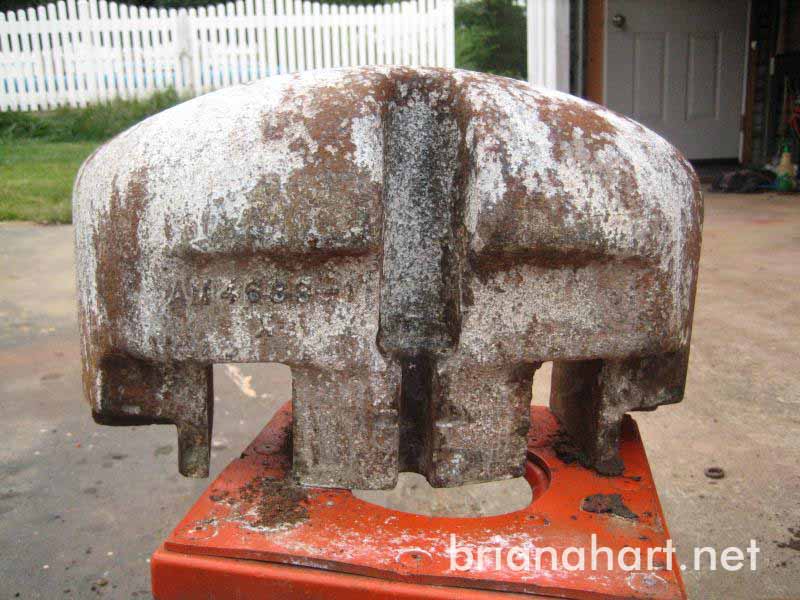

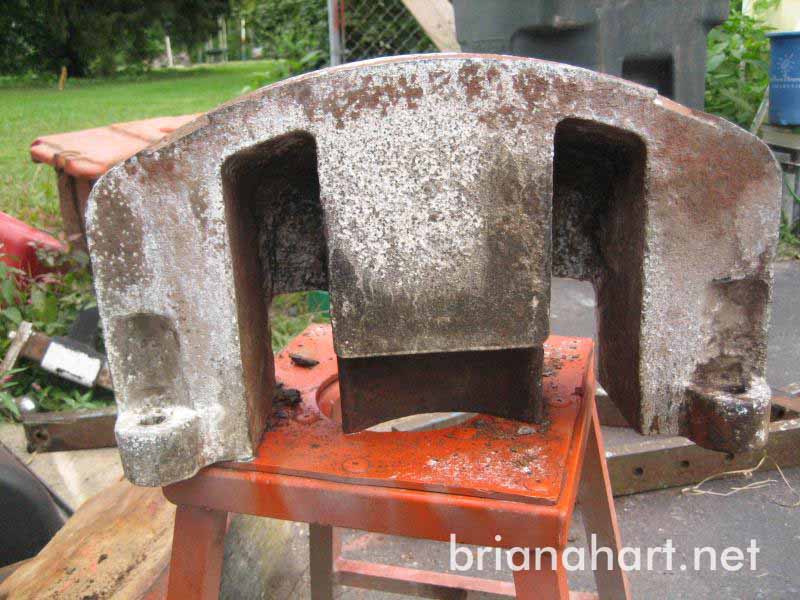

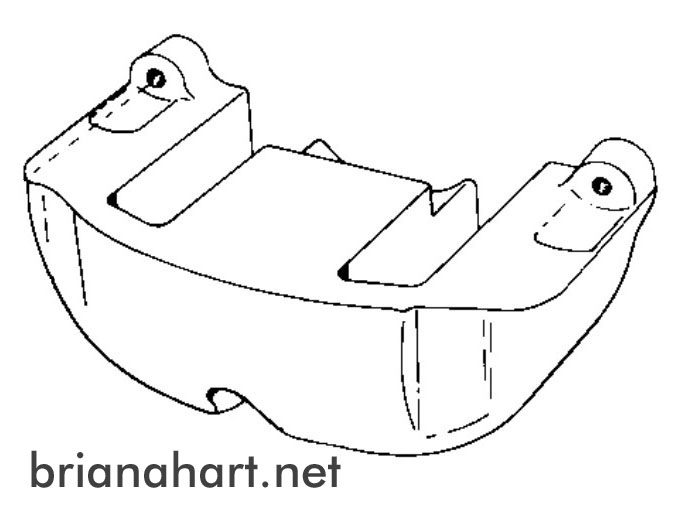

Front support weight for D10/D12 Series I and II
(Used prior to S/N D10-9001 & D12-9001)

AM4688-1

Front support weight for D10/D12 Series I and II
(Used prior to S/N D10-9001 & D12-9001)
(Photo courtesy of Charlie175)

AM4688-1

Front support weight for D10/D12 Series I and II
(Used prior to S/N D10-9001 & D12-9001)
(Photo courtesy of Charlie175)

AM4688-1

Front wheel weights for 15" and 16" wheels
(Top View)

AM3684-1

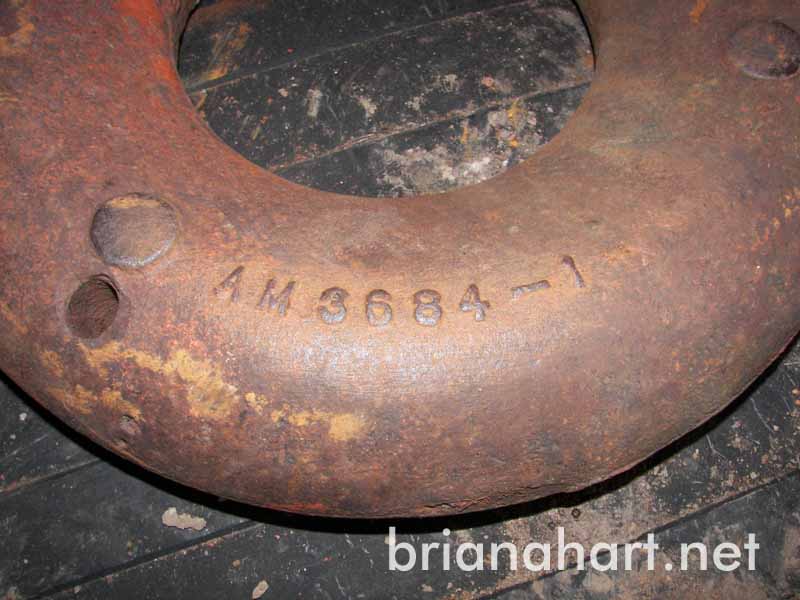

Front wheel weights for 15" and 16" wheels
(Bottom View)

AM3684-1

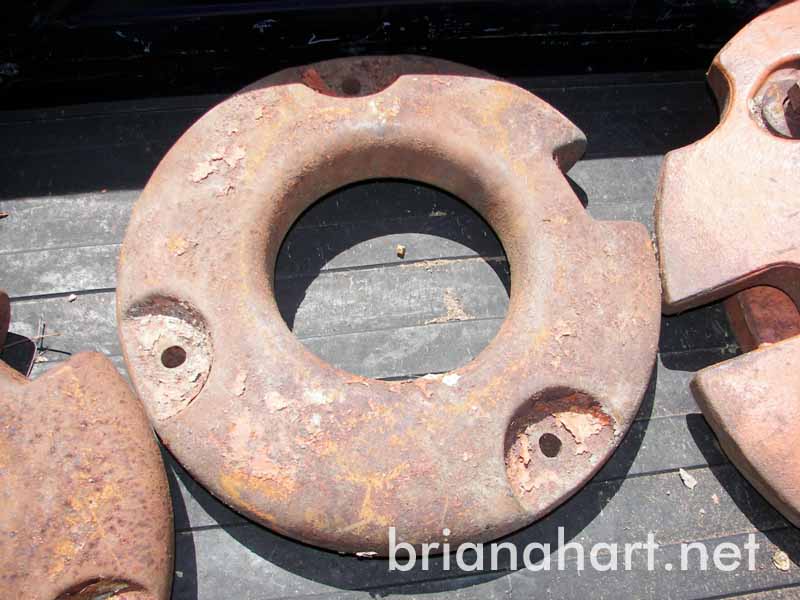

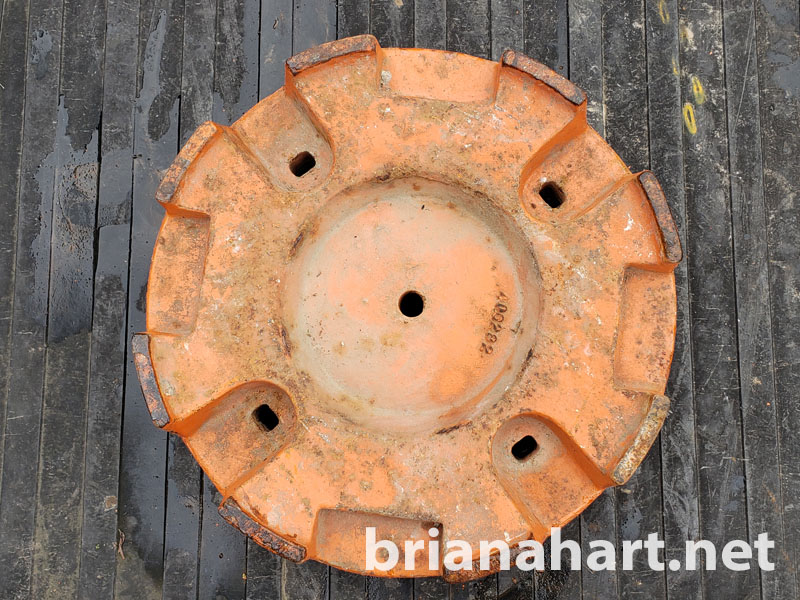

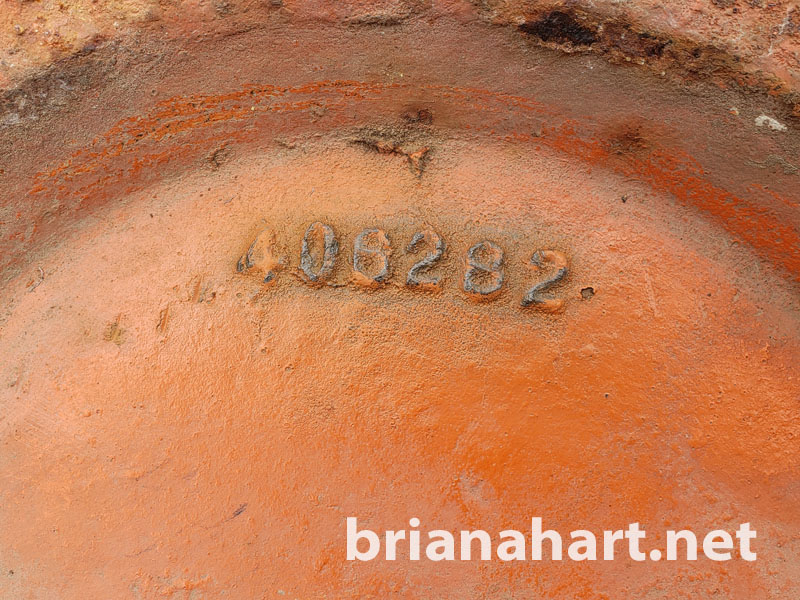

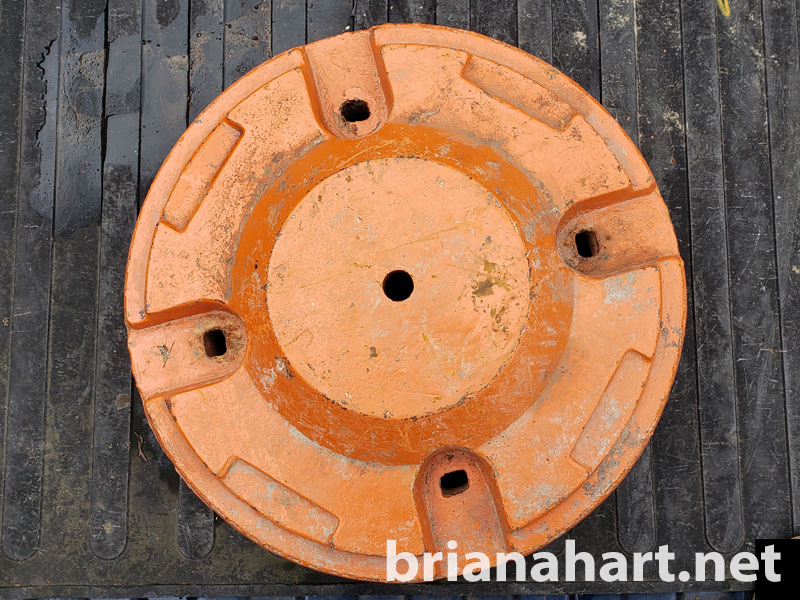

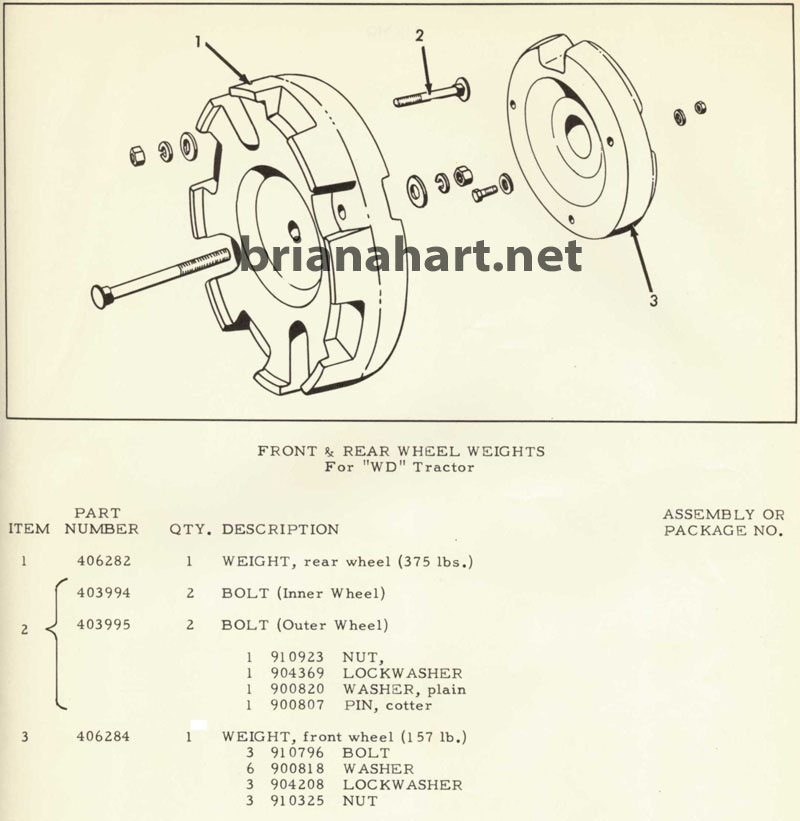

Rear wheel weights for WD/WD45/D17
(Top View)

AM2795-10

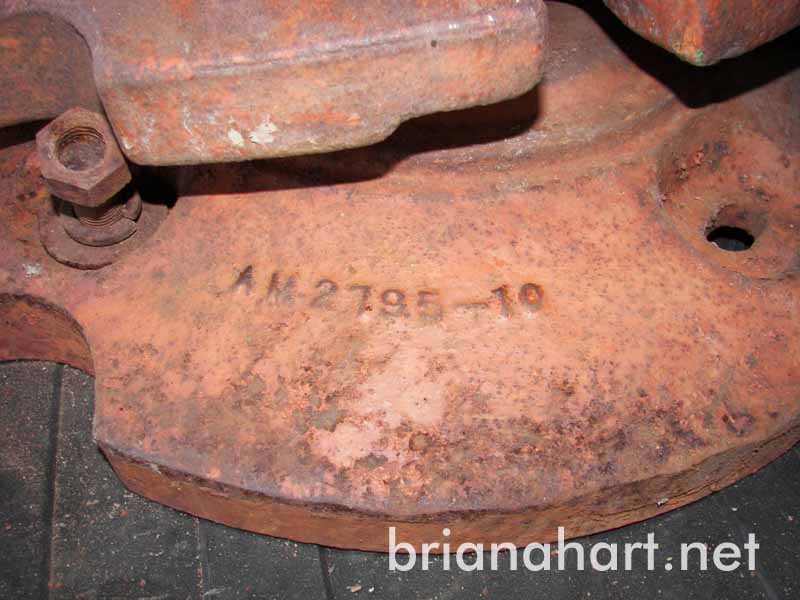

Rear wheel weights for WD/WD45/D17
(Closeup of Casting Number)

AM2795-10

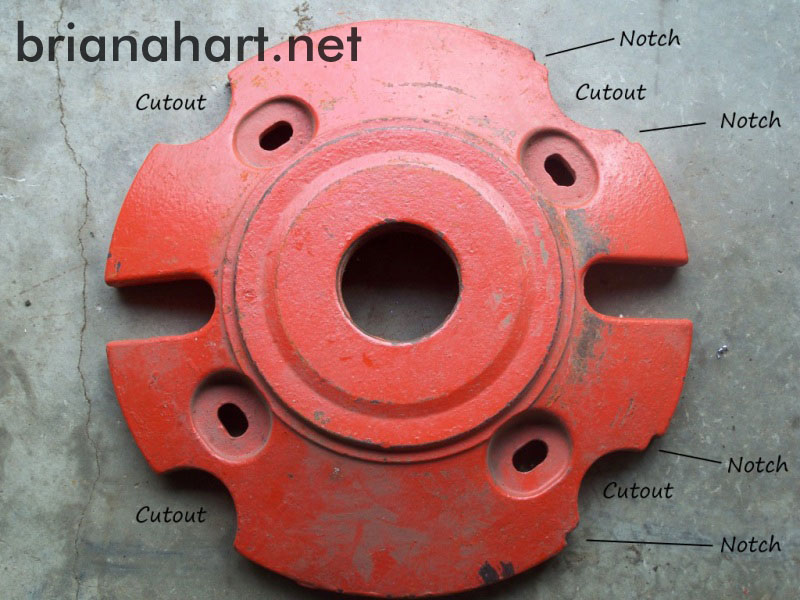

Late style rear weights for Model B ("B/WD")
(Notched for B; Will also work on WD/WD45)
(Photo courtesy of AaronH)

AM2795-8

Late style rear weights for Model B ("B/WD")
(Notched for B; Will also work on WD/WD45)

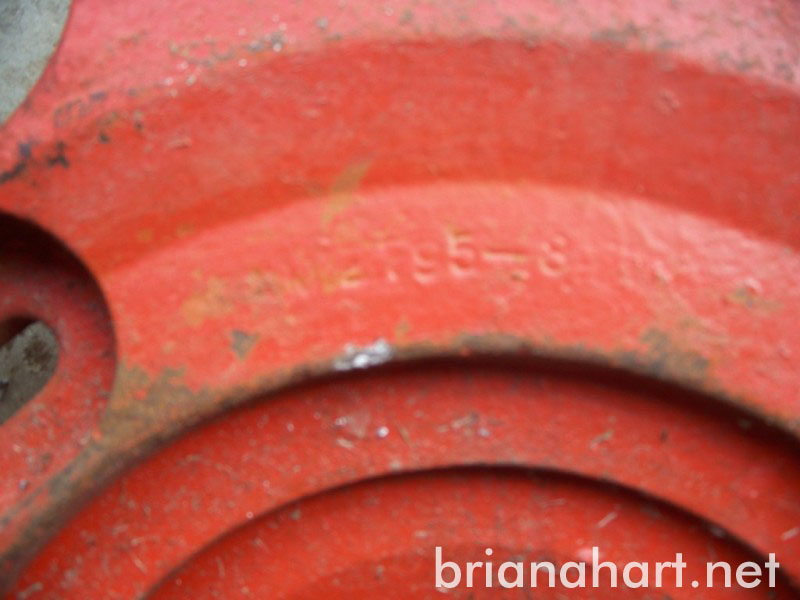

(Closeup of Casting Number)
(Photo courtesy of AaronH)

AM2795-8

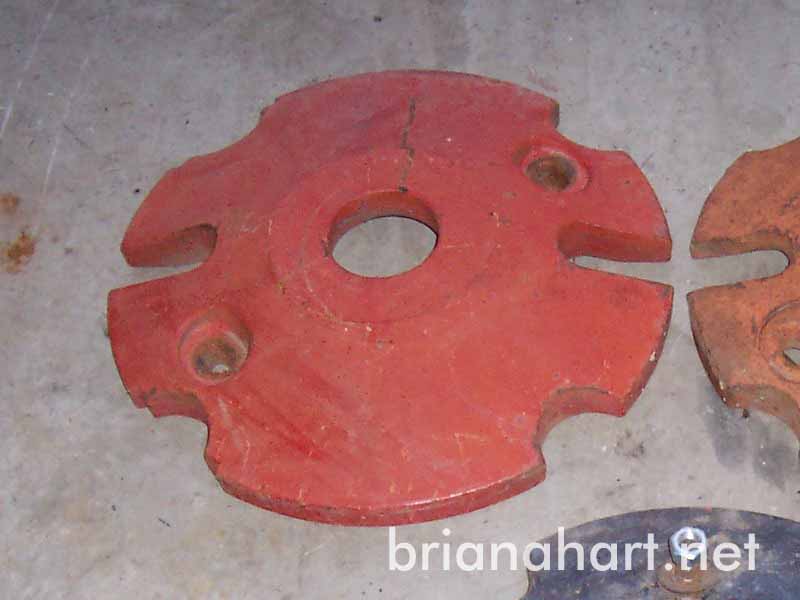

Early style rear weights for Model B

AM2795-7

Rear wheel weights for Model B
(Photo courtesy of Eldon Jons)

AM2795-6

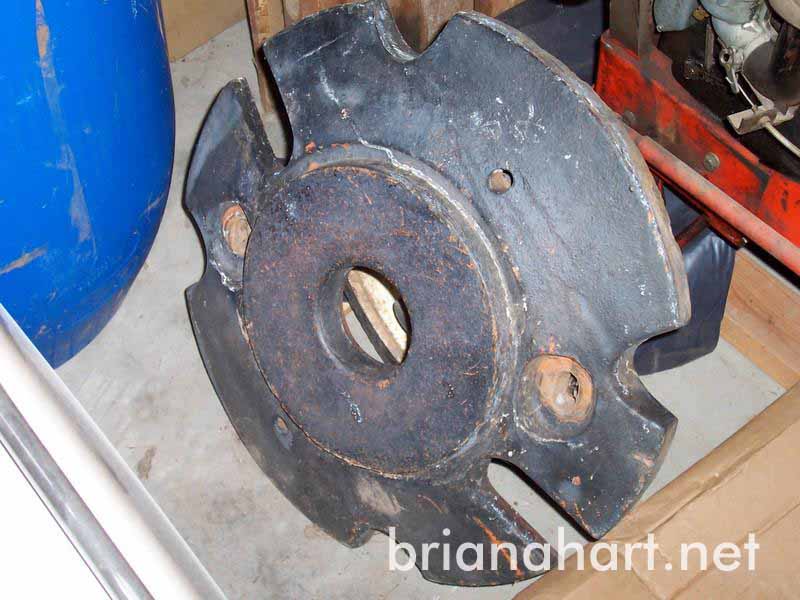

Rear wheel weights for Model B (w/ pilot diameter)
(Photo courtesy of Eldon Jons)

AM2795-3

Rear wheel weights for Model U with cast center
(Top View)

U3998-1

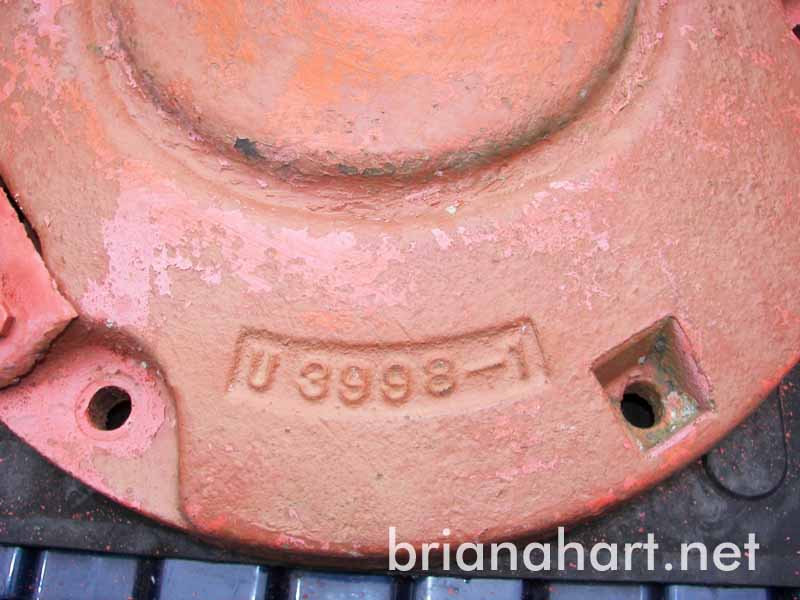

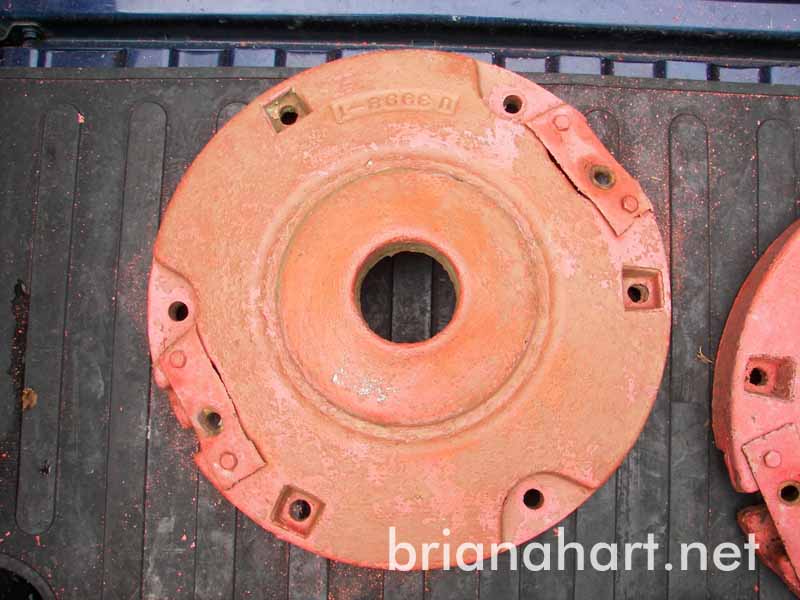

Rear wheel weights for Model U with cast center
(Closeup of Casting Number)

U3998-1

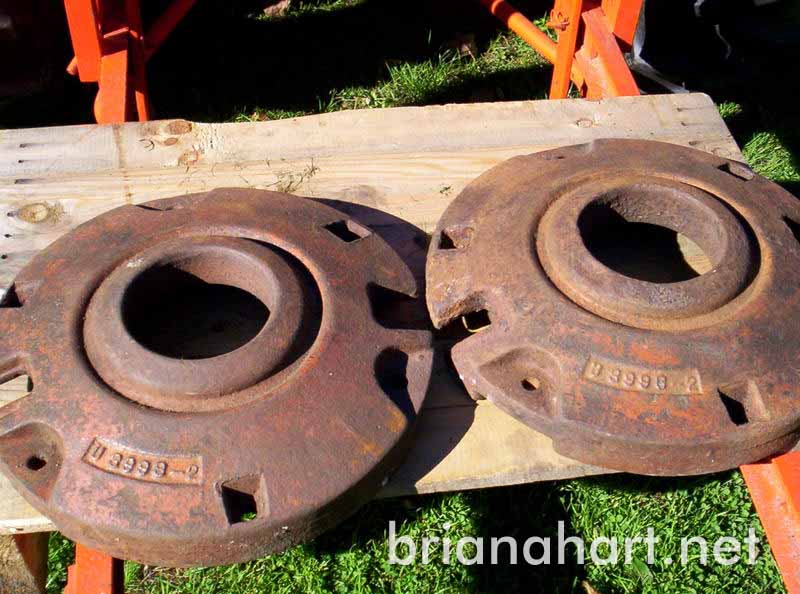

Rear wheel weights for Model A
(Photo courtesy of BILLP-SE-MI)
(Top View)

U3998-2

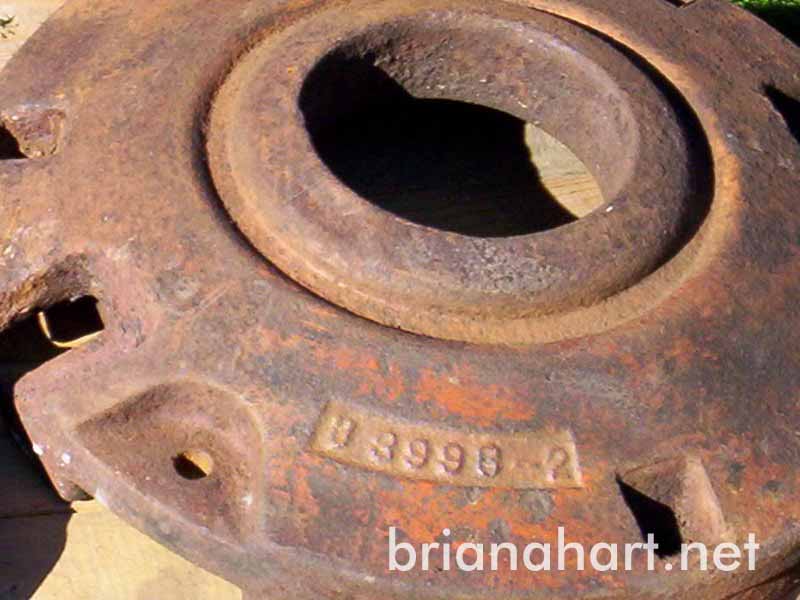

Rear wheel weights for Model A
(Photo courtesy of BILLP-SE-MI)
(Closeup of Casting Number)

U3998-2

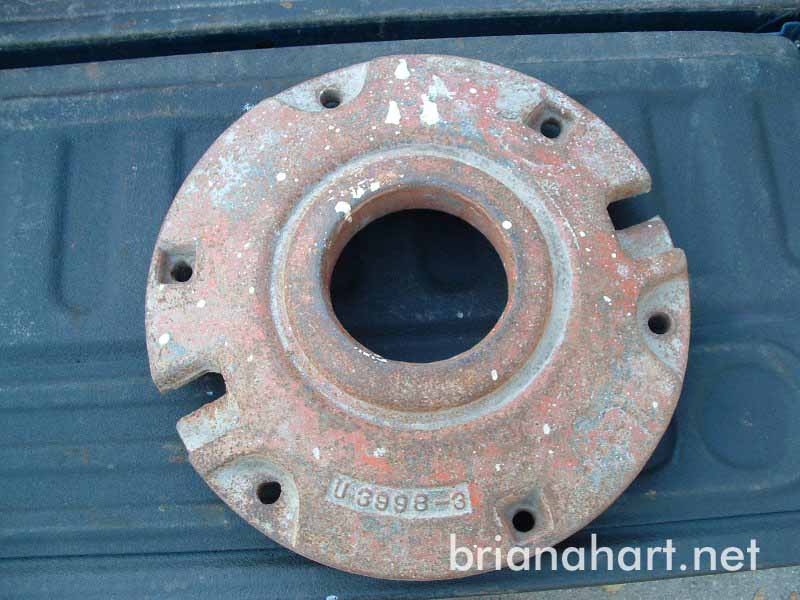

Rear wheel weights for Model A
(Photo courtesy of Roger Nolin)
(Top View)

U3998-3

Rear wheel weights for Model A
(Photo courtesy of Roger Nolin)
(Closeup of Casting Number)

U3998-3

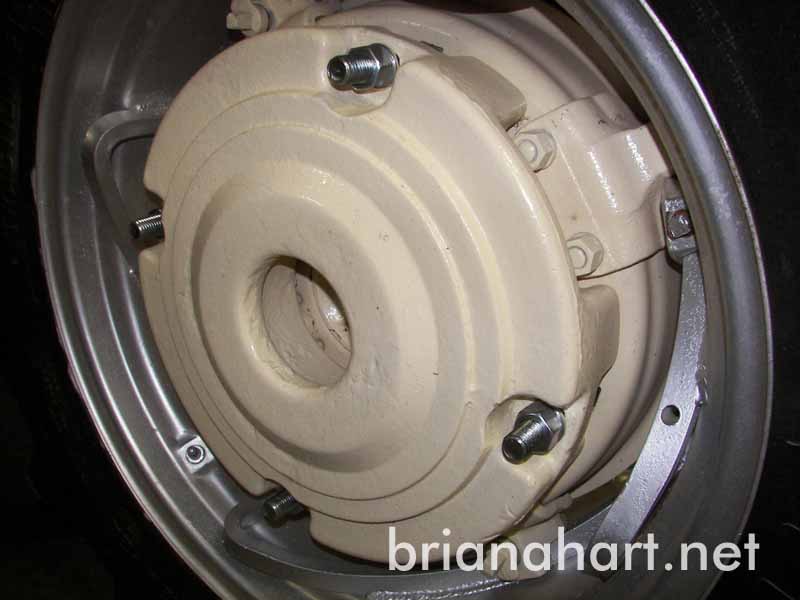

Rear wheel weights for CA/D10/D12 Power Shift Wheels
(Top View)

AM3733-2

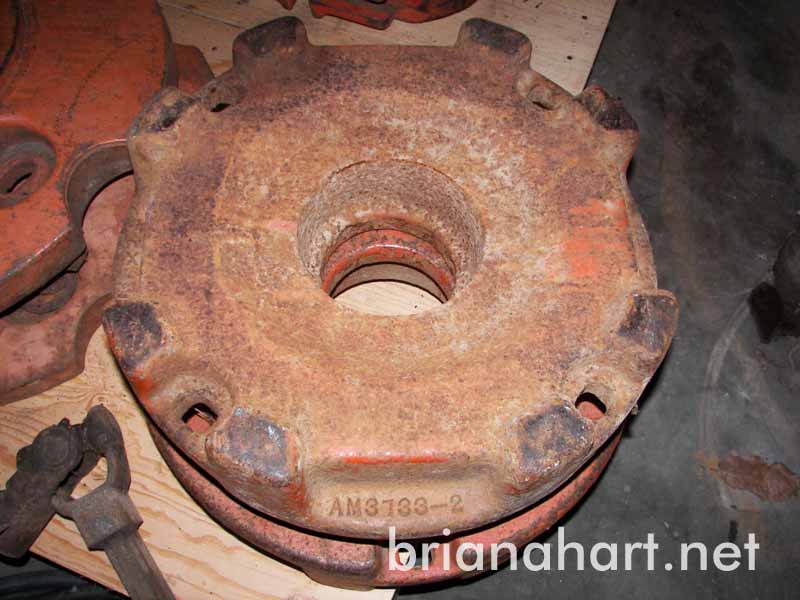

Rear wheel weights for CA/D10/D12 Power Shift Wheels
(Closeup of Casting Number)

AM3733-2

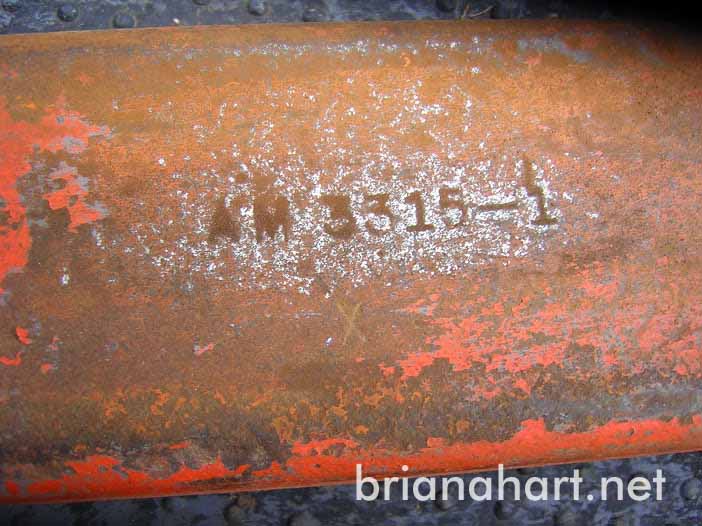

Early B Engine Side Weight w/o bevel
(Photo courtesy of Ken Aggen)

AM3315-1

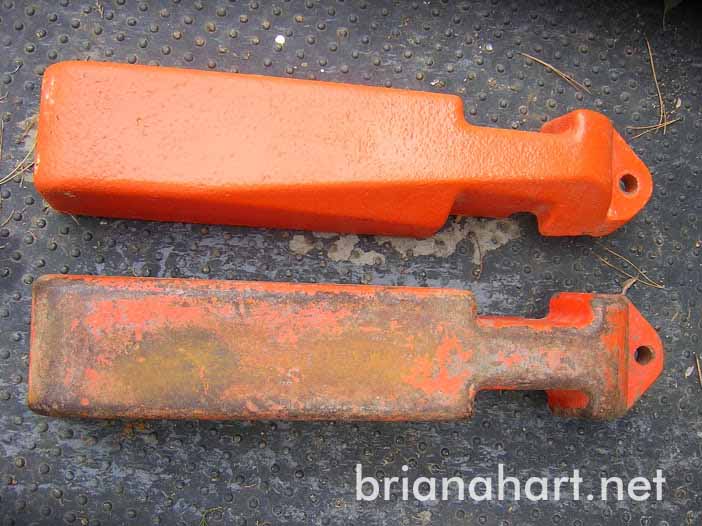

B Engine Side Weights
AM3315-1 (bottom) and AM3315-2 (top) Comparison
(Photo courtesy of Ken Aggen)

AM3315-1

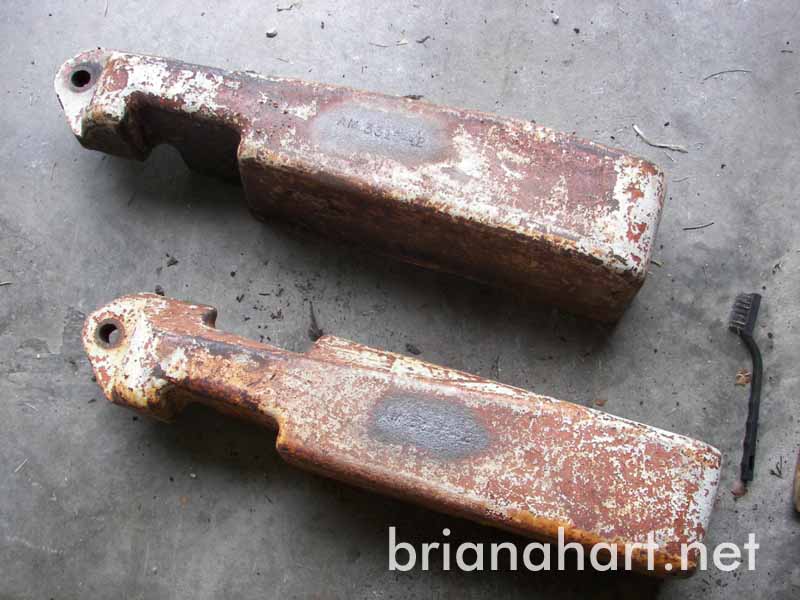

B/C Engine Side Weights
(Top View)

AM3315-2

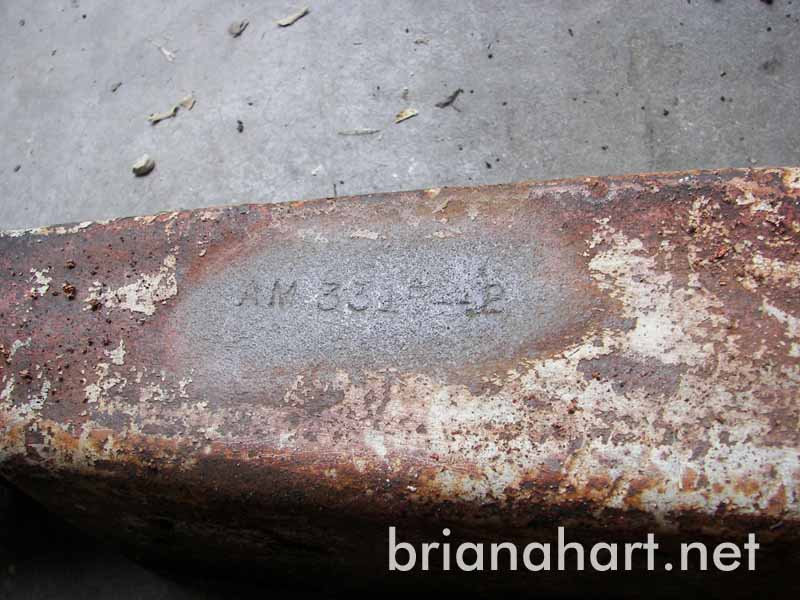

B/C Engine Side Weights
(Closeup of Casting Number)

AM3315-2

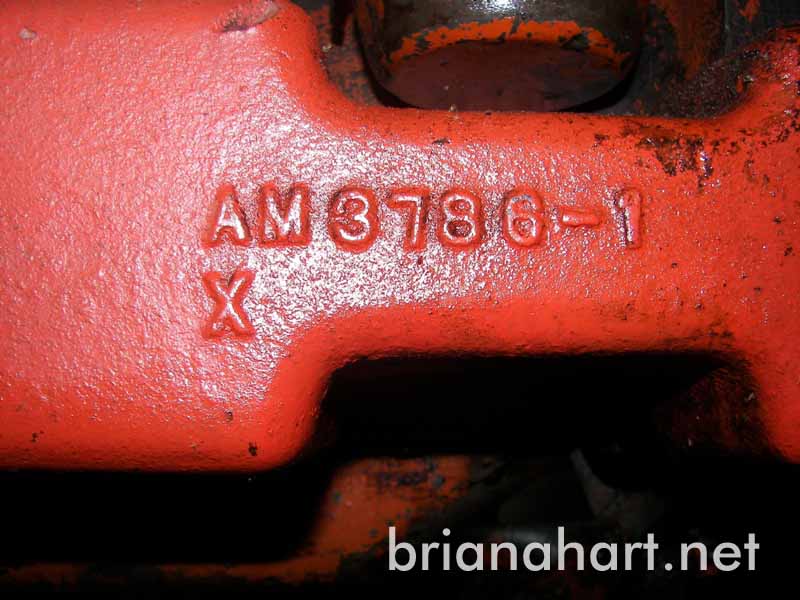

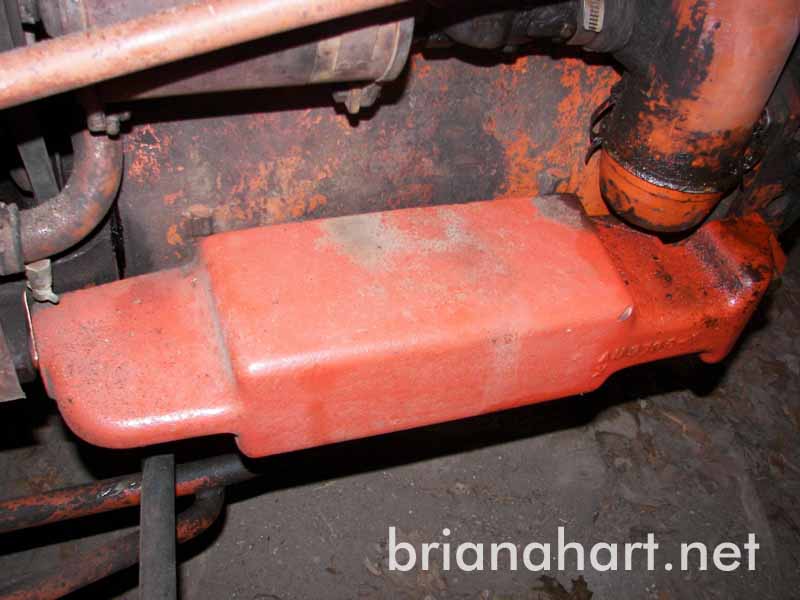

CA Engine Side Weights
(Top View)

AM3786-1

CA Engine Side Weights
(Closeup of Casting Number)

AM3786-1

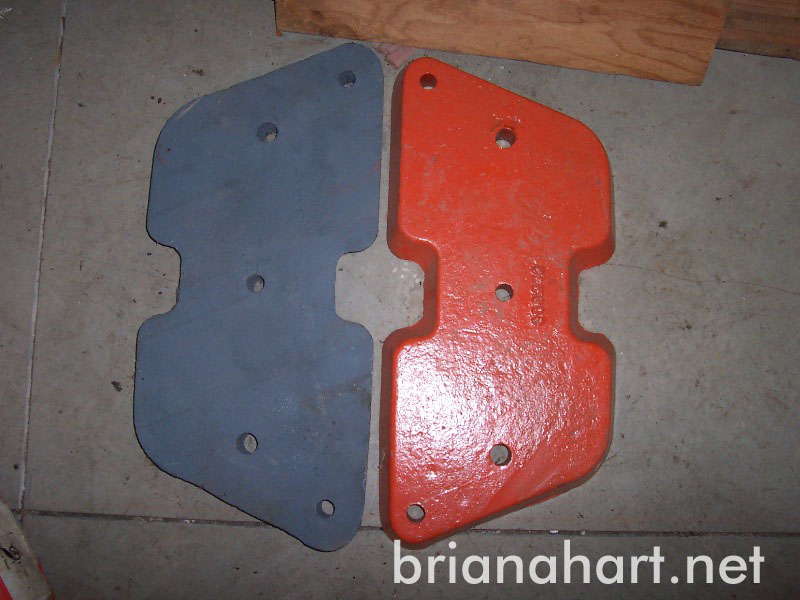

Front wishbone weights for Model B
(Photo courtesy of Eldon Jons)

308272

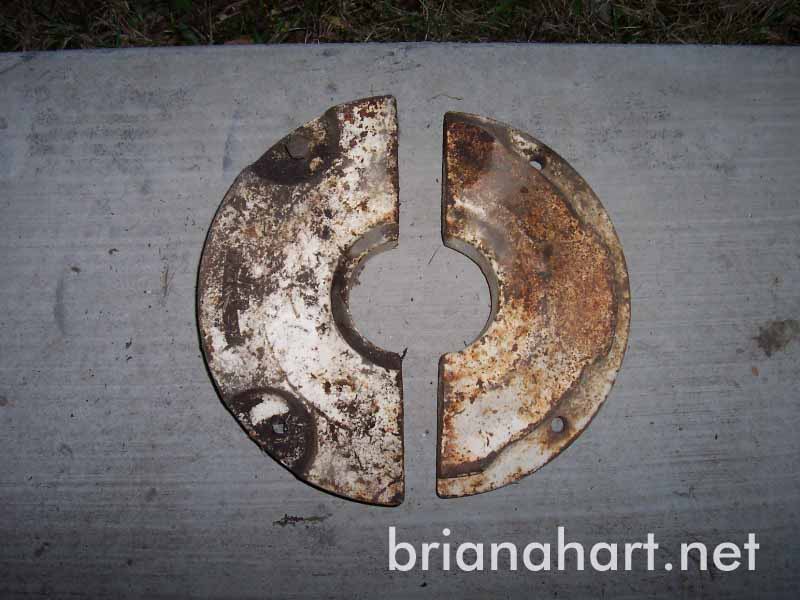

Front inner wheel weights for D10/D12
(Photo courtesy of Eldon Jons)

AM4688-2

Rear sectional weights for D14/D15

AM4485

Rear sectional weights for D14/D15
(Photo courtesy of Tim Stack)

AM4485

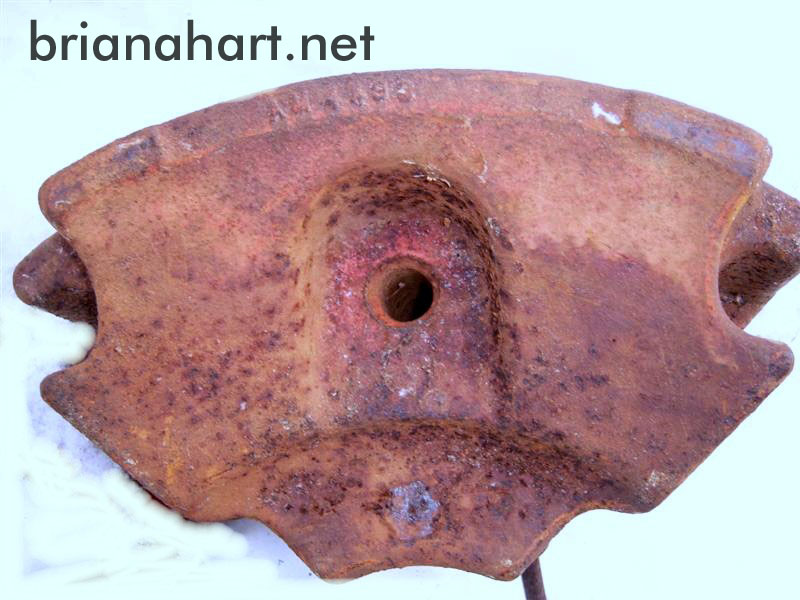

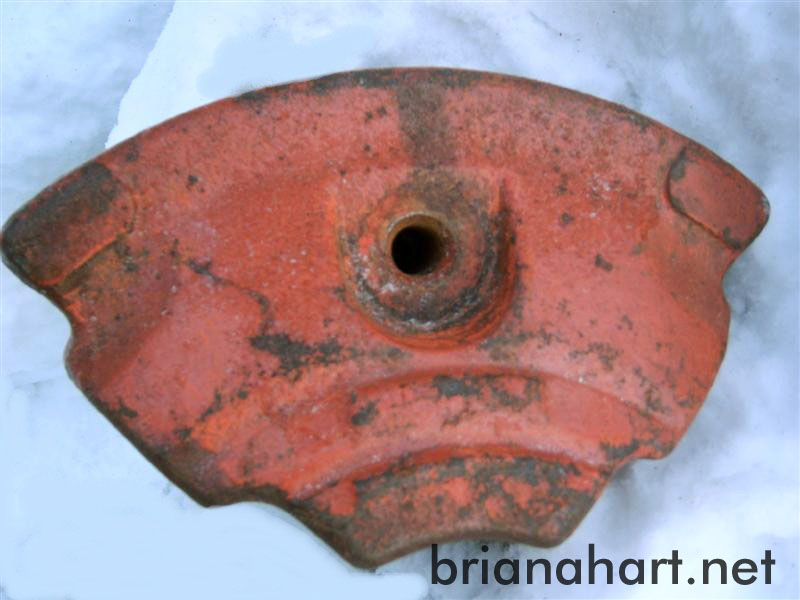

Rear sectional weights for D17 Series I and II
(From D17 Brochure TL-1825-1057, Oct 1957)

AM4493

Rear sectional weights for D17 Series I and II (Front)
(Photo courtesy of Brian G. NY)

AM4493

Rear sectional weights for D17 Series I and II (Back)
(Photo courtesy of Brian G. NY)

AM4493

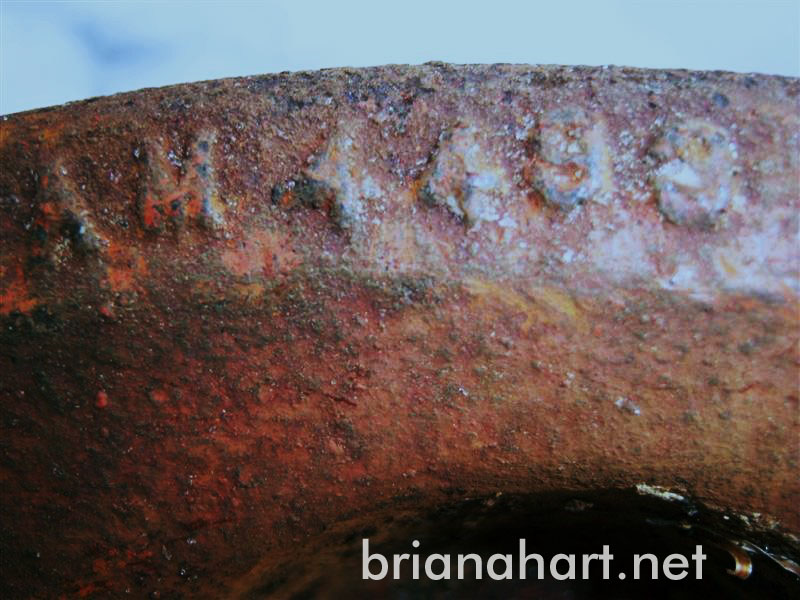

Rear sectional weights for D17 Series I and II (Closeup)
(Photo courtesy of Brian G. NY)

AM4493

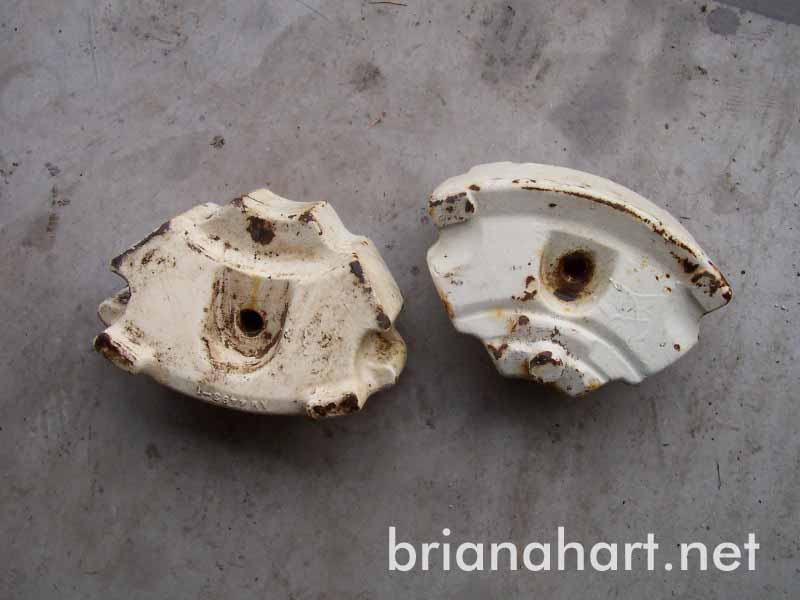

Rear sectional weights for D17III-IV/170/175/180/185
with 28 inch wheels
(Photo courtesy of Eldon Jons)

AM4483-1

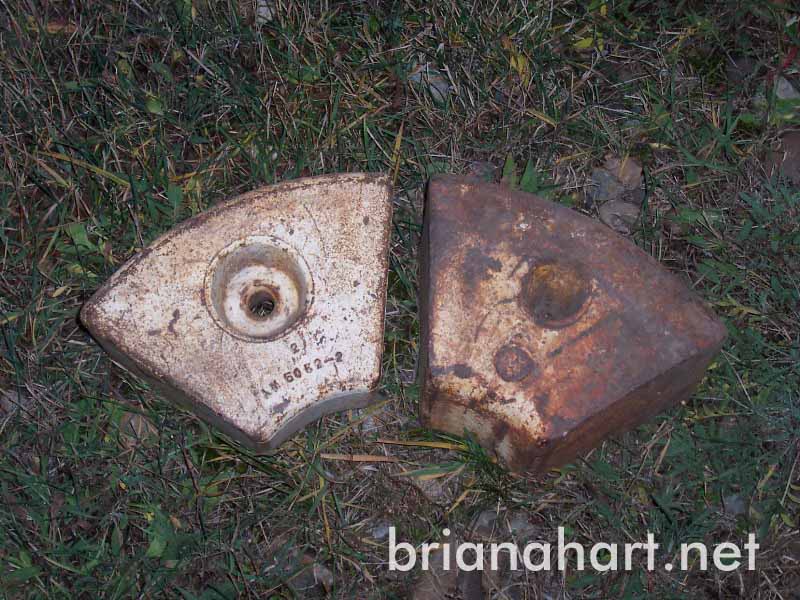

Rear sectional weights for D19/190
(Photo courtesy of Eldon Jons)

AM5052-2

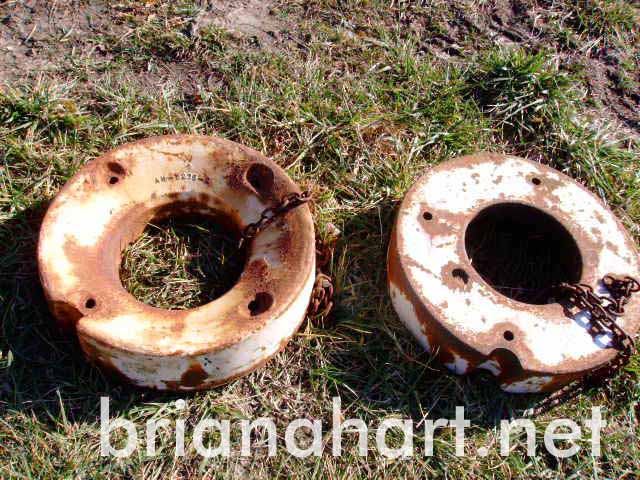

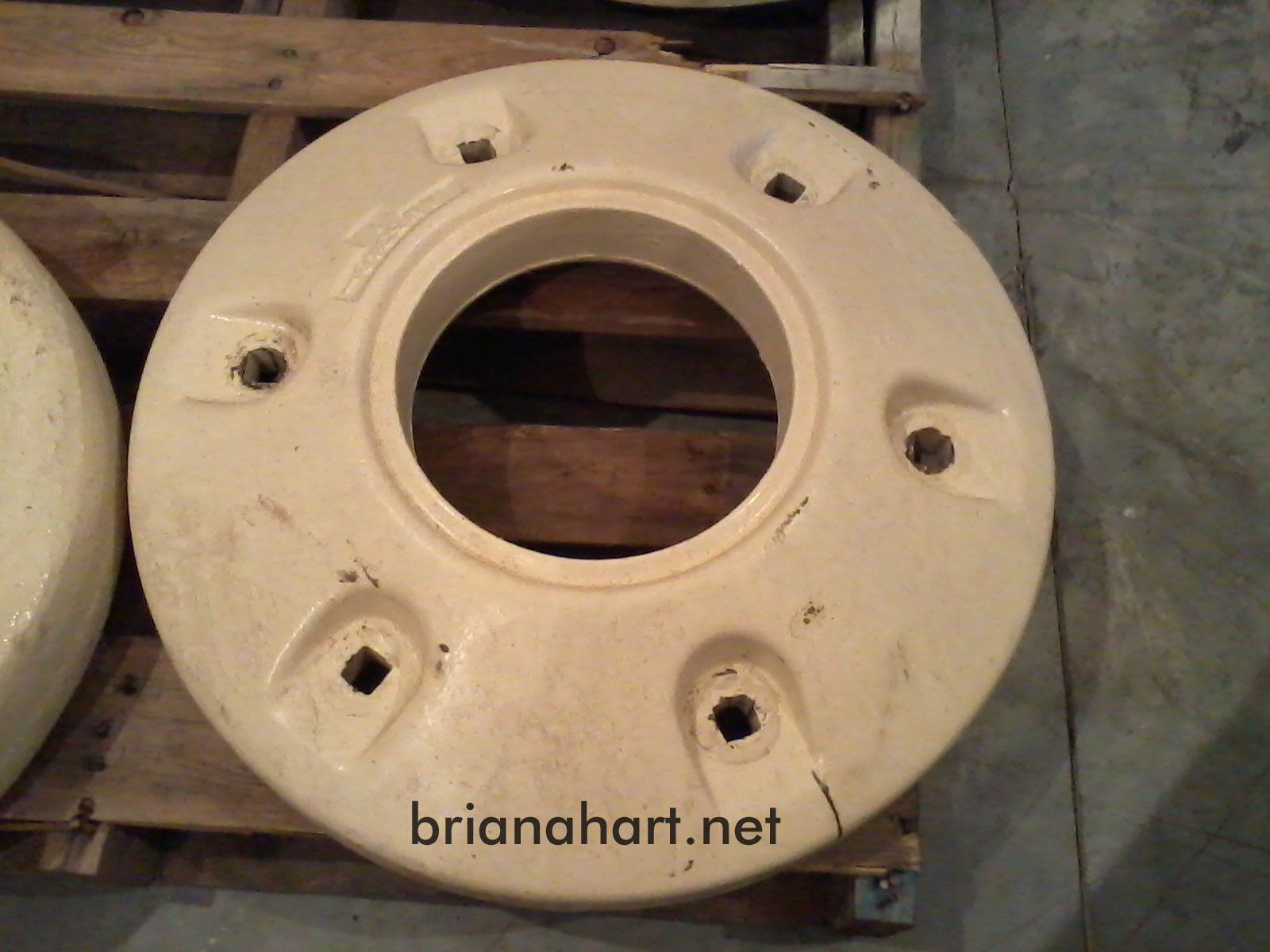

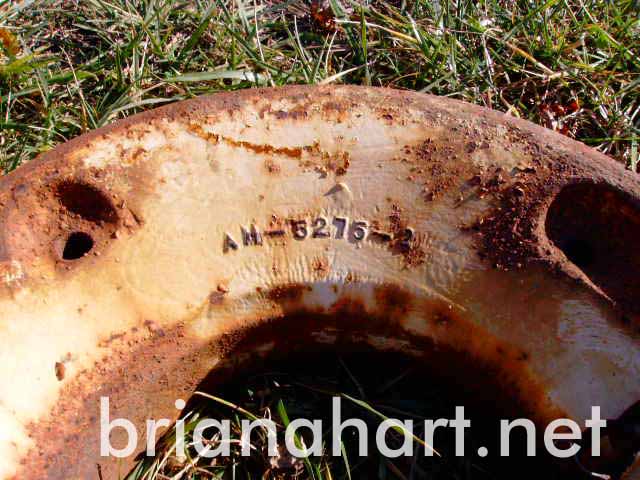

Rear wheel weights for D21
(Photo courtesy of Ron Albart)

AM5346

A-C Hundred Series Front Starter Weight -
First Version
(Three-boss AM6050-1 Weight)
(Front View)

AM6050-1

A-C Hundred Series Front Starter Weight -
First Version
(Three-boss AM6050-1 Weight)
(Rear View)

AM6050-1

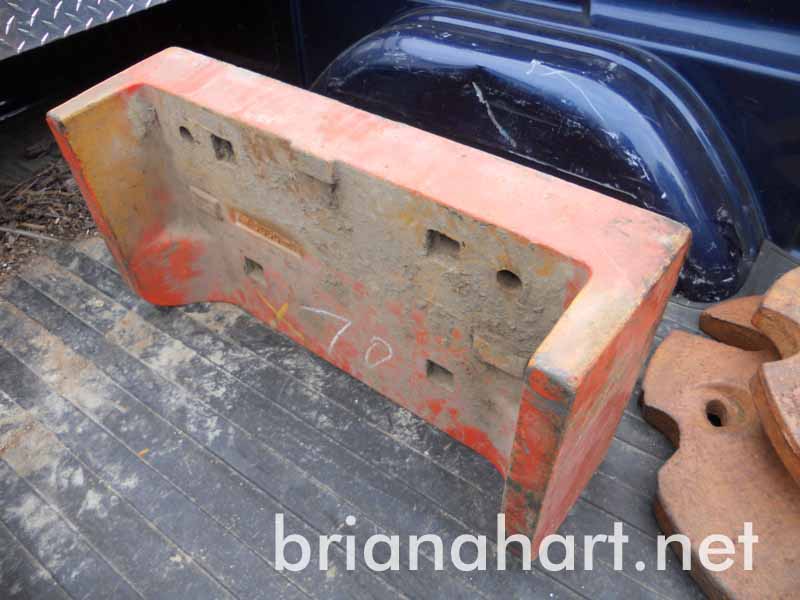

A-C Hundred Series Front Starter Weight -
First Version
(Three-boss AM6050-1 Weight)

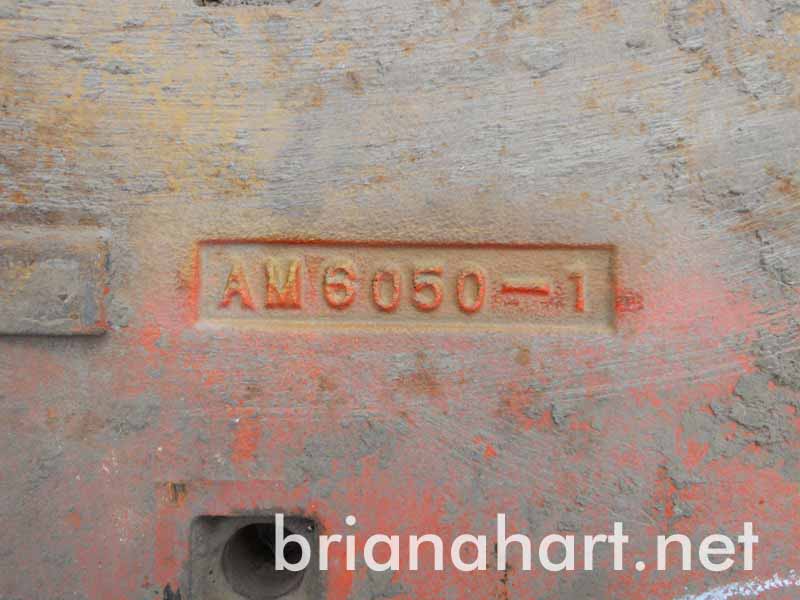

(Closeup of casting number)

AM6050-1

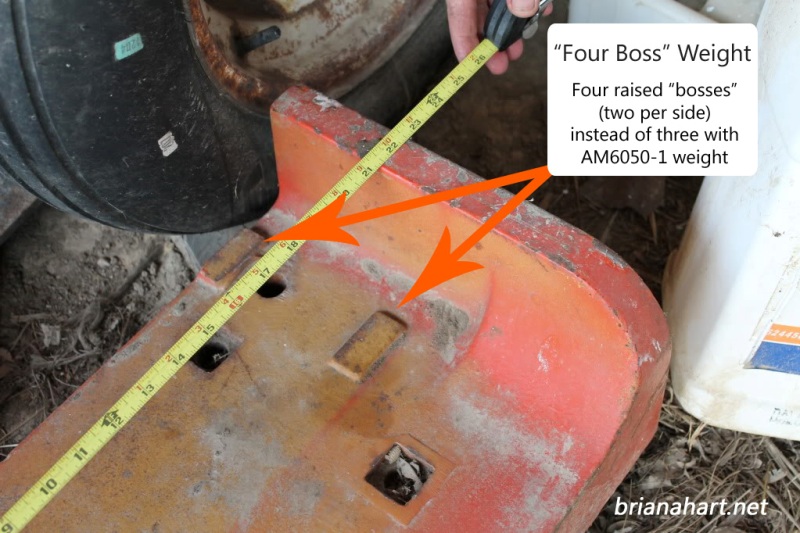

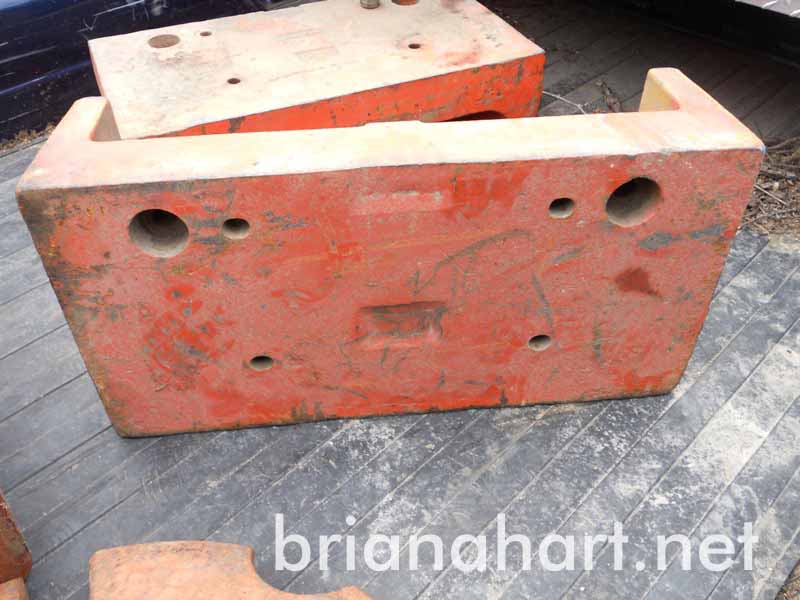

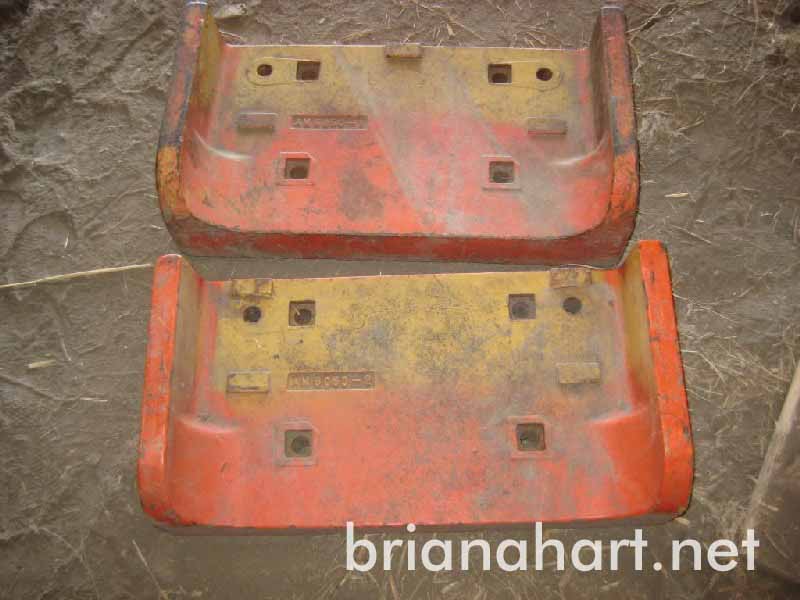

A-C Hundred Series Front Starter Weight -
Second Version
(Four-boss AM6050-2 Weight)
(Photo courtesy of Tracy Martin)

AM6050-2

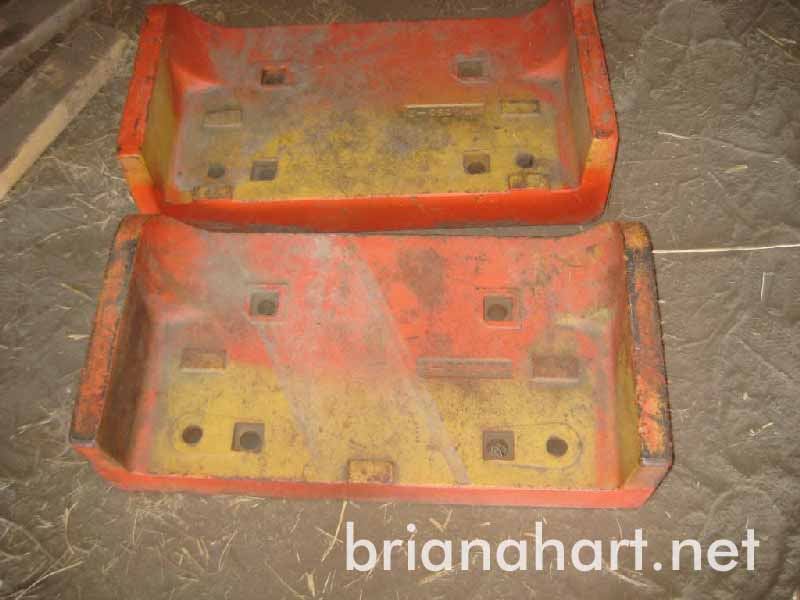

A-C Hundred Series Front Starter Weight -
Second Version
(Four-boss AM6050-2 Weight)
(AM6050-1 / AM6050-2 Comparison)
(Photo courtesy of Dave (NE))

AM6050-2

A-C Hundred Series Front Starter Weight -
Second Version
(Four-boss AM6050-2 Weight)
(AM6050-1 / AM6050-2 Comparison)
(Photo courtesy of Dave (NE))

AM6050-2

A-C Hundred Series Front Starter Weight -
2nd Version
(Four-boss AM6050-2 Weight)
(AM6050-1 / AM6050-2 Comparison)
(Photo courtesy of Dave (NE))

AM6050-2

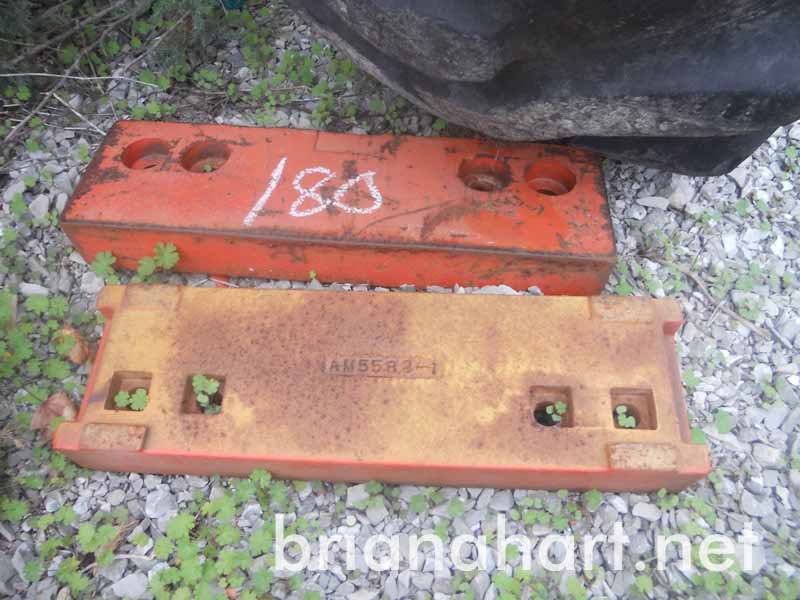

A-C Hundred Series Front Weights
(Front/Rear View)

AM5582-1

A-C Hundred Series Front Weights
(Photo courtesy of Matt Folkers)

AM5582-1

A-C Hundred Series Front Weights
(Photo courtesy of Matt Folkers)

AM5582-1

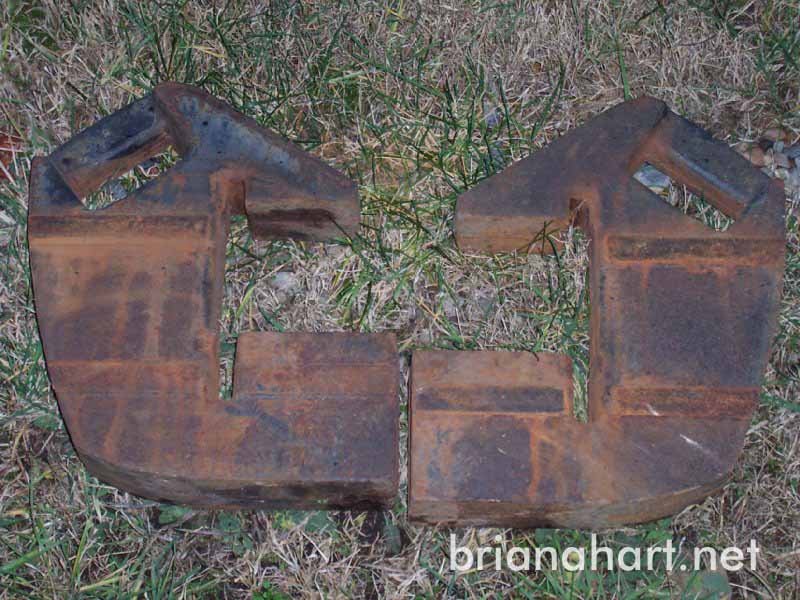

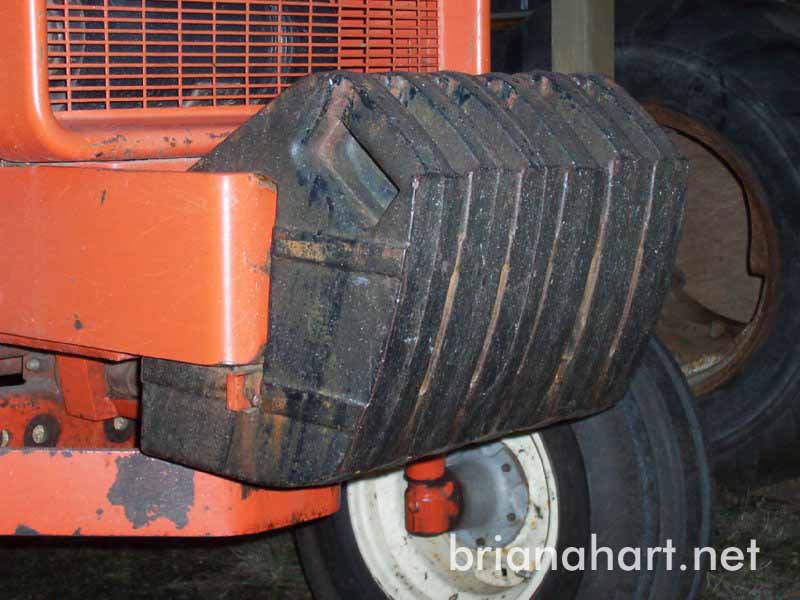

A-C suitcase weights for 170-200, 5040-5050, etc
(Photo courtesy of Eldon Jons)

255444

A-C suitcase weights for 170-200, 5040-5050, etc
(Shown on Model 175)
(Photo courtesy of Eldon Jons)

255444-09

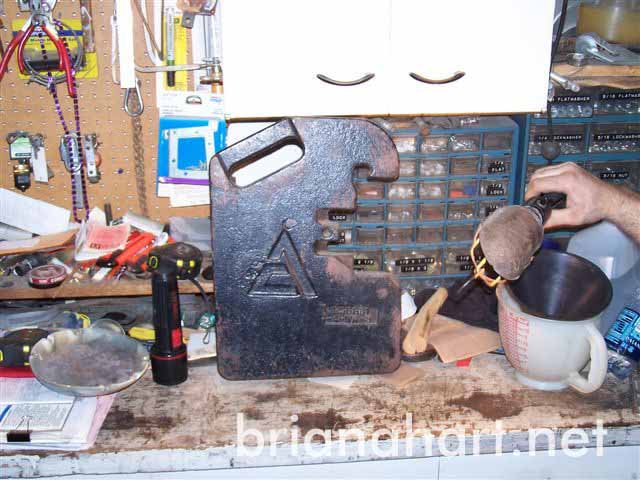

A-C Hundred Series Suitcase Weights (200/210/220)
(Photo courtesy of BrianF(IL))

255861

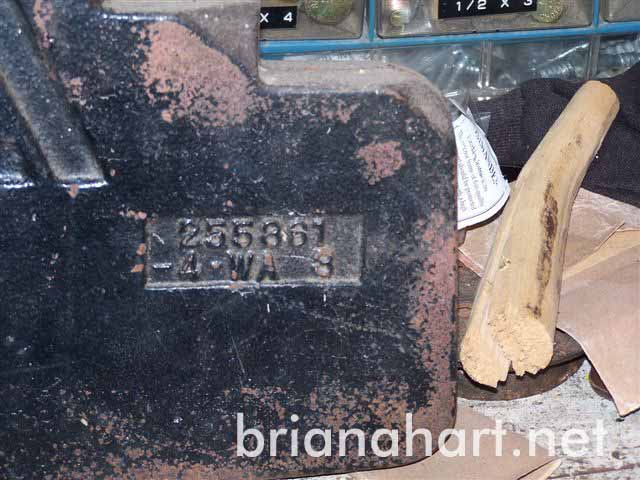

A-C Hundred Series Suitcase Weights (200/210/220)
(Photo courtesy of BrianF(IL))

255861

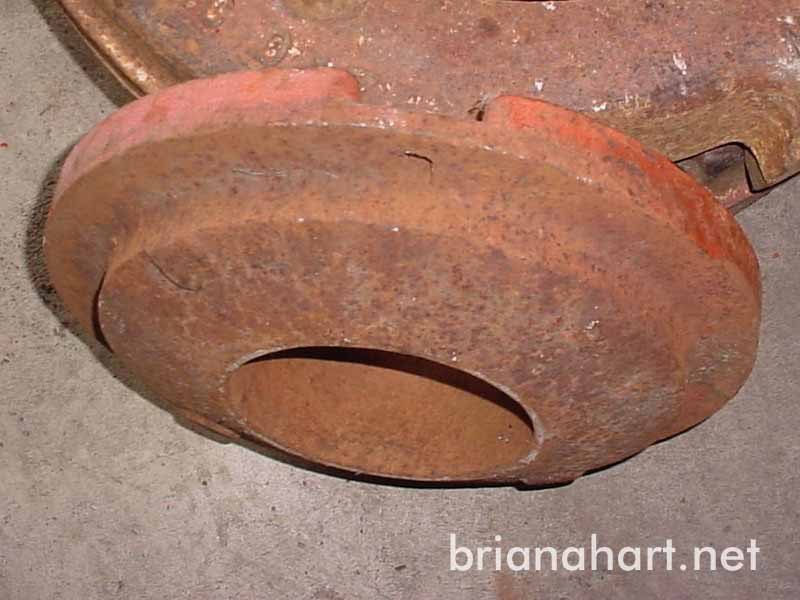

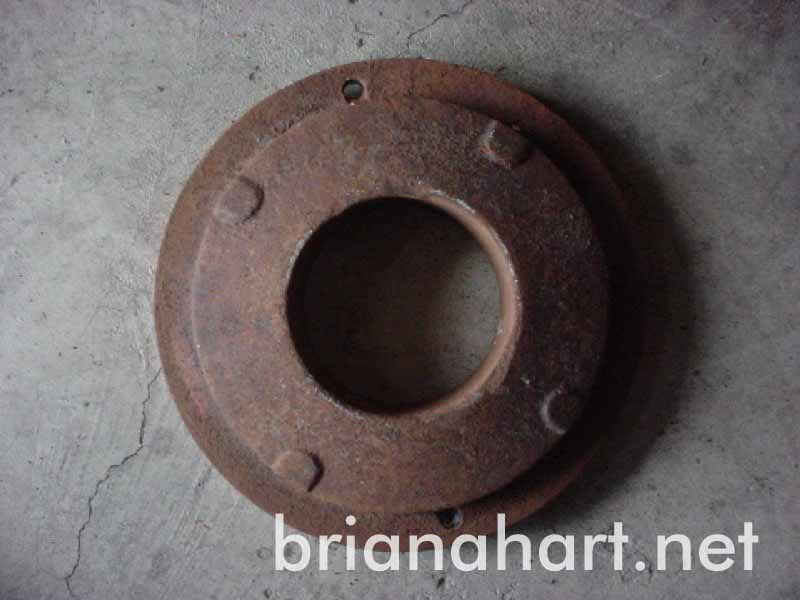

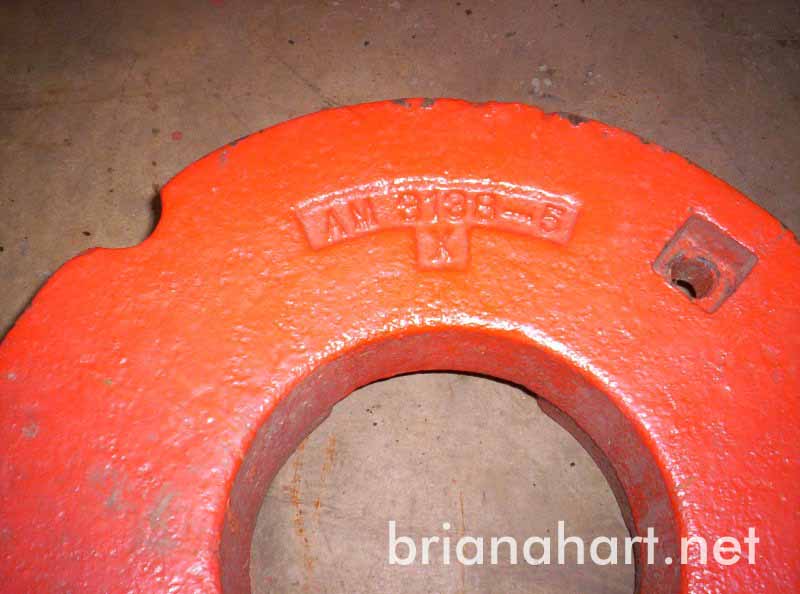

Model C Inner Rear Wheel Weights
Also used on Model B with dished center and
D10 with standard center (non-powershift rims)

(Photo courtesy of BILLP-SE-MI)
(Closeup of Casting Number)

AM3138-5

Model C Inner Rear Wheel Weights
Also used on Model B with dished center and
D10 with standard center (non-powershift rims)

(Photo courtesy of BILLP-SE-MI)

AM3138-5

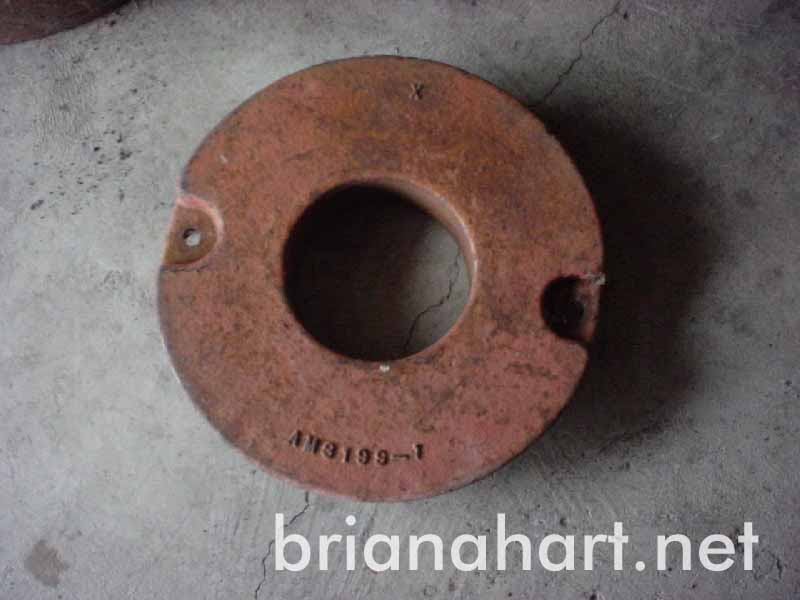

Front Inner Wheel Weights For 15" Wheels
(B/C/CA/D10/D12)
(Photo courtesy of Mike Snyder)
(Outside View)

AM3199-1

Front Inner Wheel Weights For 15" Wheels
(B/C/CA/D10/D12)
(Photo courtesy of Mike Snyder)
(Inside View)

AM3199-1

Front Inner Wheel Weights For 15" Wheels
(B/C/CA/D10/D12)
(Photo courtesy of Mike Snyder)
(Top View)

AM3199-1

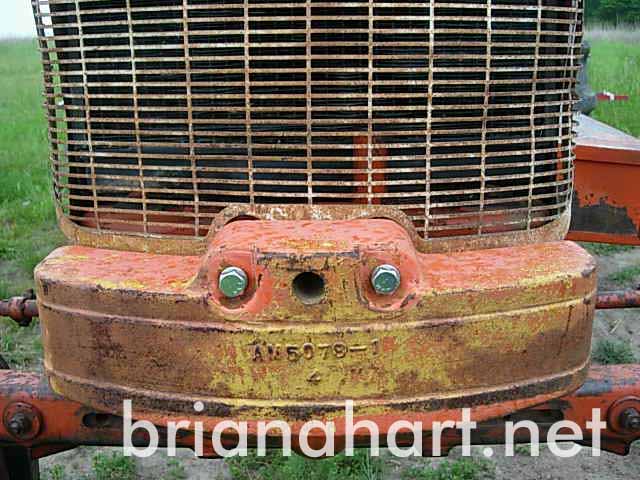

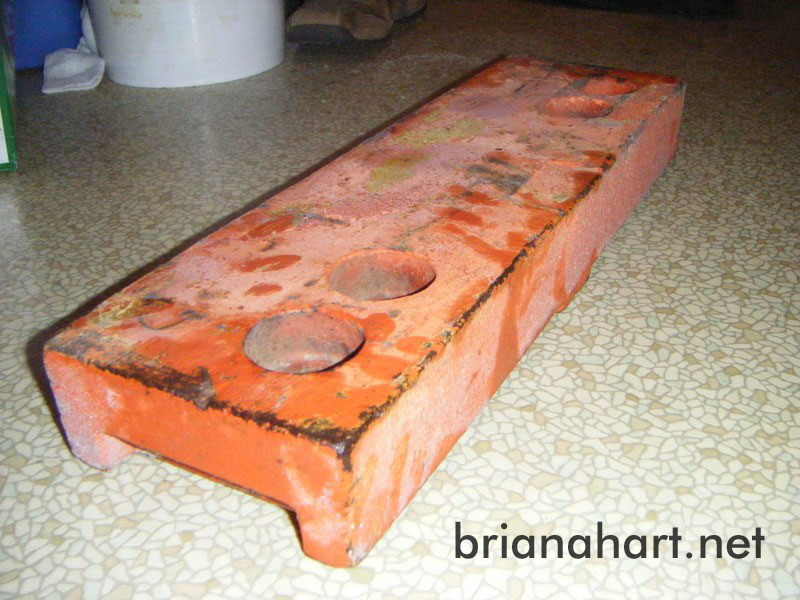

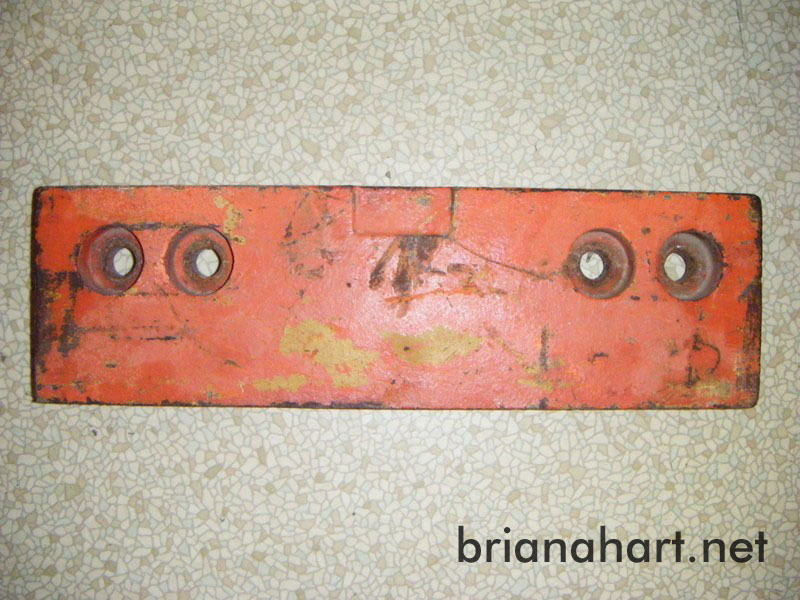

D19 Front Weight (236275)
Mounts inside shroud;
Shown mounted externally on D15 II

(Photo courtesy of Joe Oligschlaeger)

AM5078-1

D19 Front Weight (236275)
Mounts inside shroud;
Shown mounted externally on D15 II

(Photo courtesy of Joe Oligschlaeger)
(Closeup of Casting Number)

AM5078-1

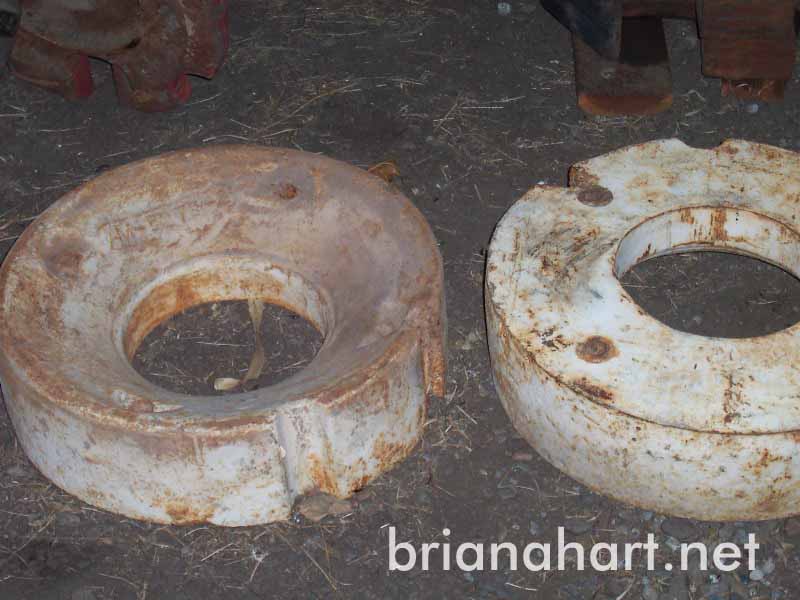

Rear wheel weights for I40/I400
(Photo courtesy of Eldon Jons)

AM5275-2

Diameter=20", Thickness=5.5"
Four bolt holes 11.25" on center

(Photo and dimensions courtesy of Richard Aiken)

AM5275-2

Diameter=20", Thickness=5.5"
Four bolt holes 11.25" on center

(Photo and dimensions courtesy of Richard Aiken) (Closeup of Casting Number)

AM5275-2

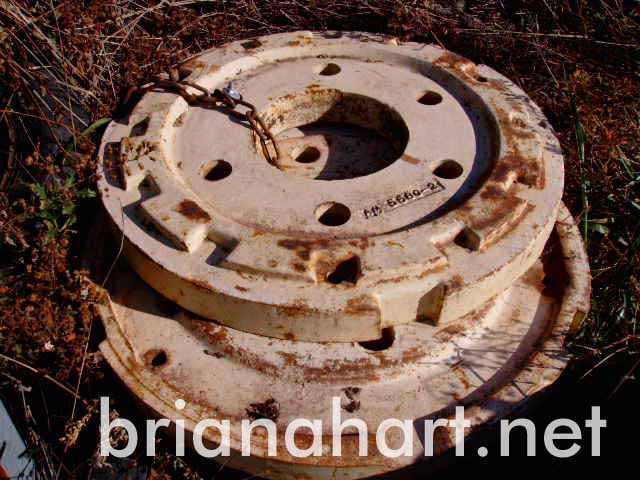

Inner Rear Wheel Weights for D19/190/200
Diameter=30", Thickness=3", 10" center hole
Tested on D19 with 34" wheels
(Photo and dimensions courtesy of Richard Aiken)

AM5580-2

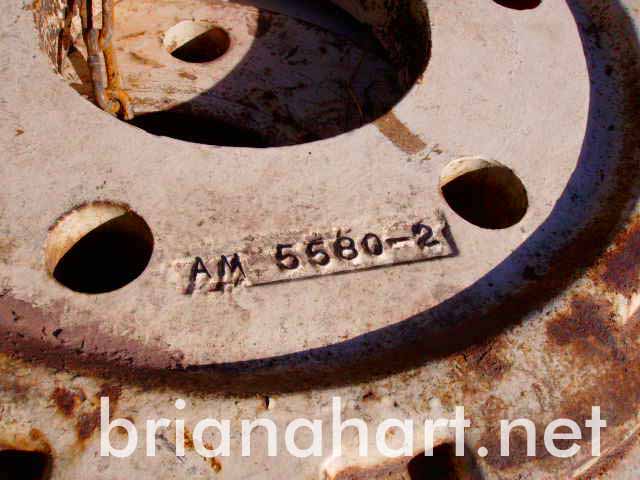

Inner Rear Wheel Weights for D19/190/200
Diameter=30", Thickness=3", 10" center hole
Tested on D19 with 34" wheels
(Photo and dimensions courtesy of Richard Aiken)
(Closeup of Casting Number)

AM5580-2

Rear wheel weights for Model B (w/ pilot diameter)
(Photo courtesy of Eldon Jons)

AM2795-3

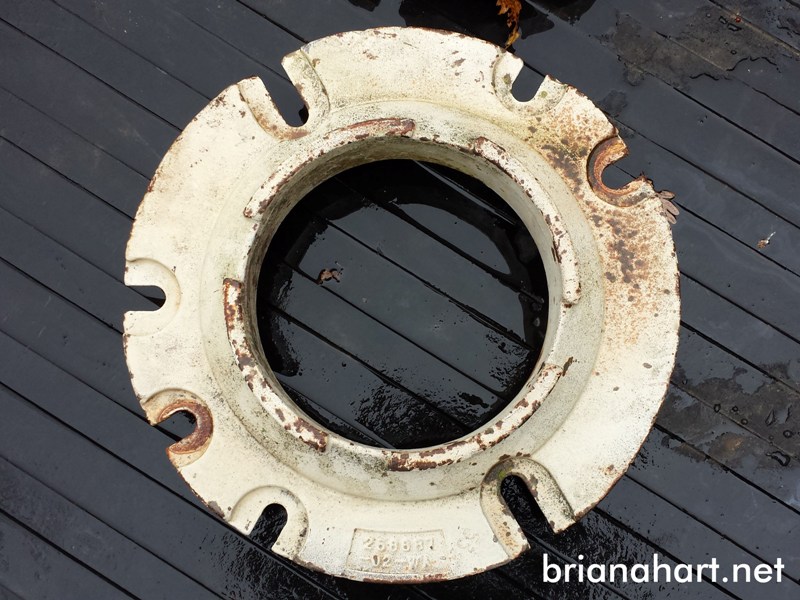

Late rear weights for 28" and 30" wheels
(175/185/6060/6080)

258887-02-WA

Late rear weights for 28" and 30" wheels
(175/185/6060/6080)

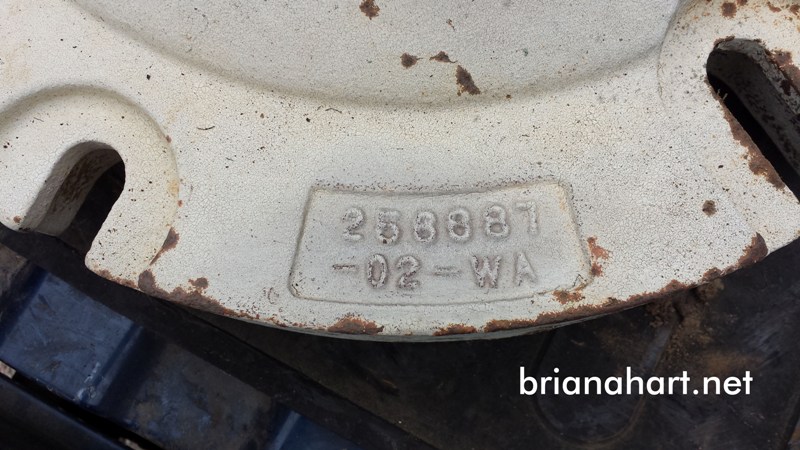

Closeup of casting number

258887-02-WA

Late rear weights for 28" and 30" wheels
(175/185/6060/6080)

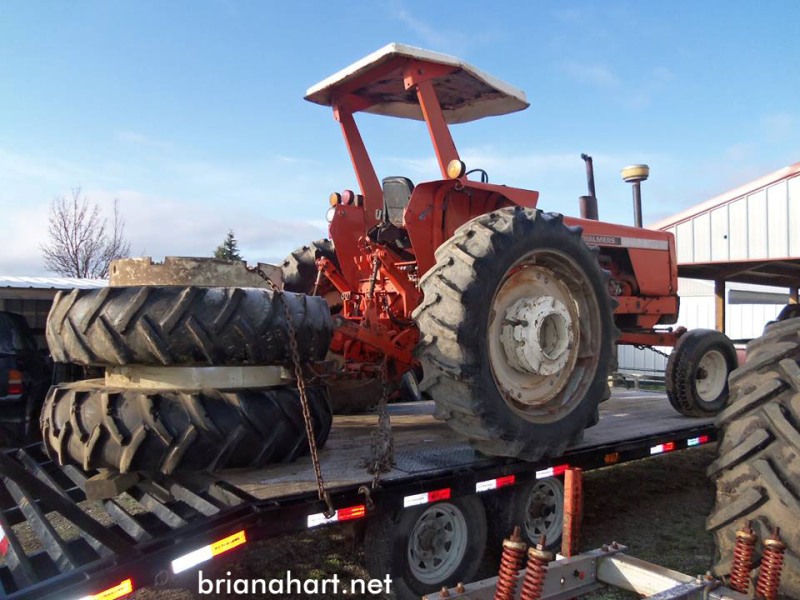

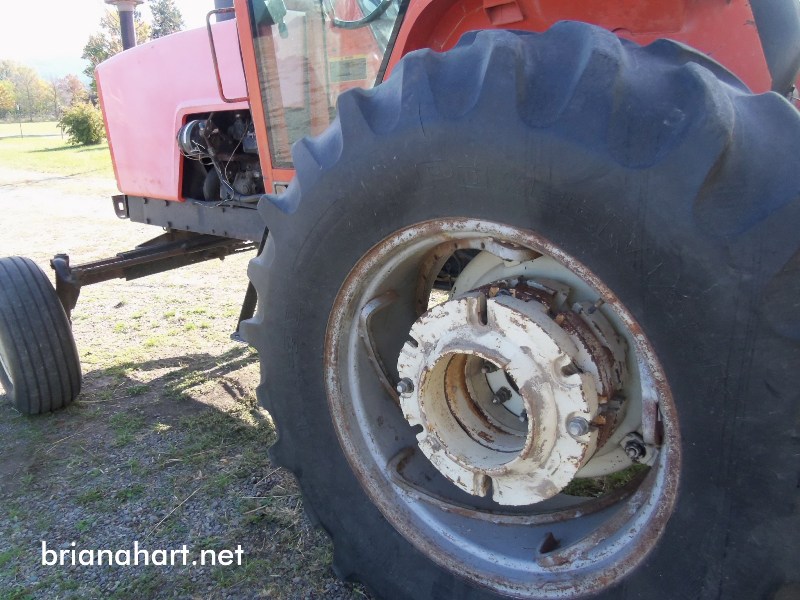

Shown mounted on 6080
(Photo courtesy of Eldon Jons)

258887-02-WA

Late rear weights for 28" and 30" wheels
(175/185/6060/6080)
Shown mounted on 185 with 38" wheels
(Photo courtesy of Eldon Jons)

258887-02-WA
